View Listing Gallery
Builder
Maori Yachts
Staterooms
1
Length
54' (16.45 M)
Delivered
2025
MANA Details

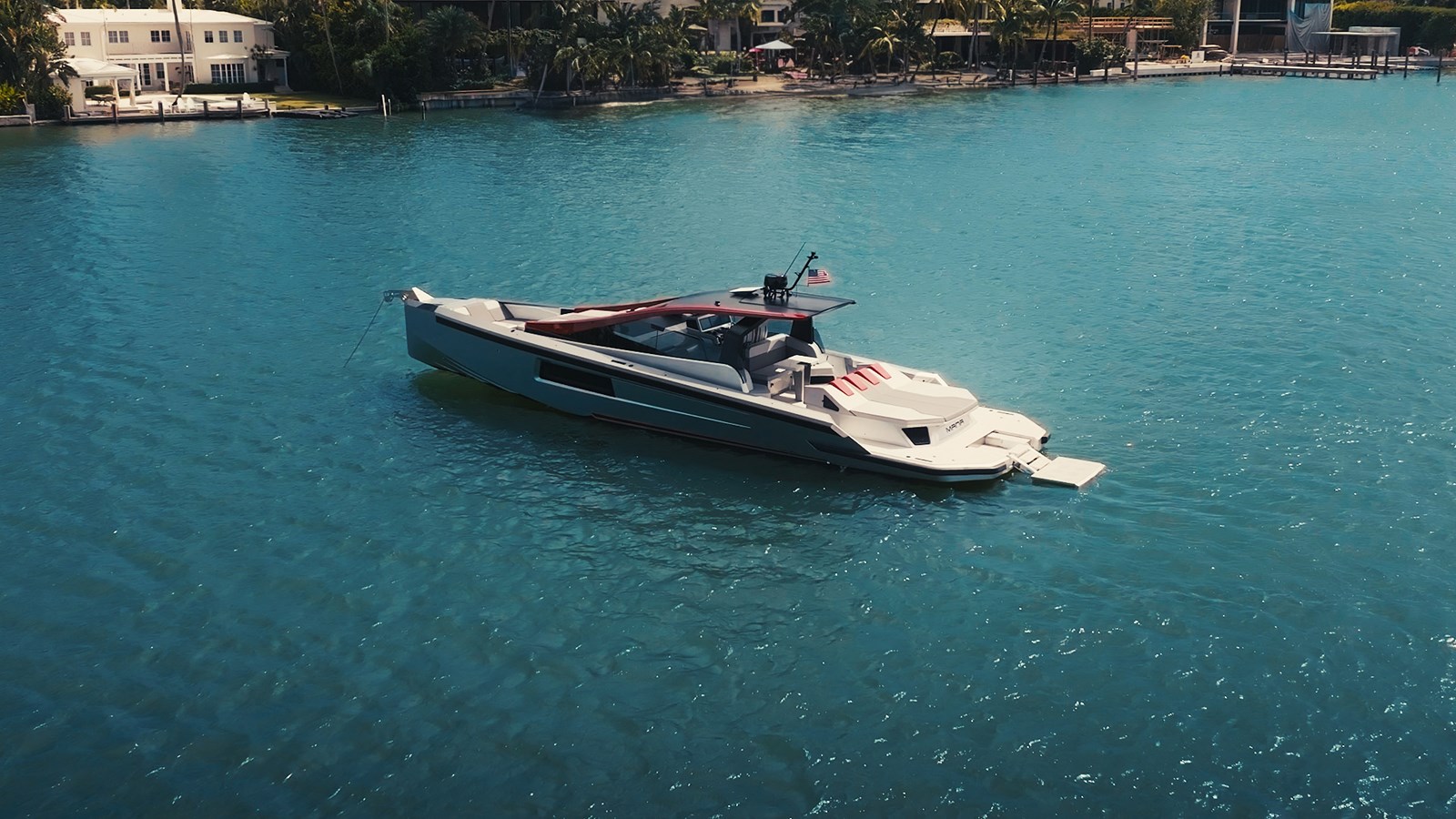

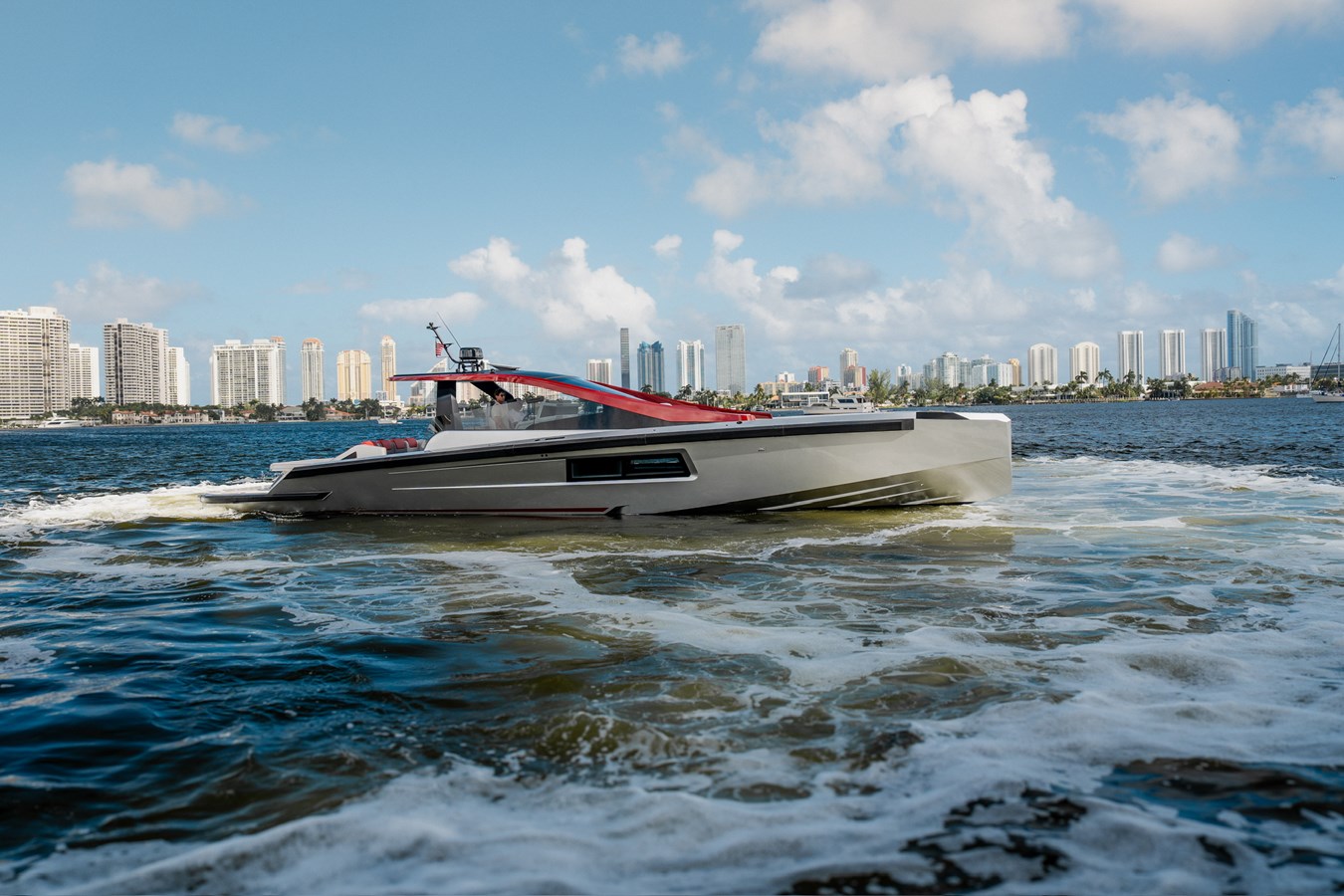

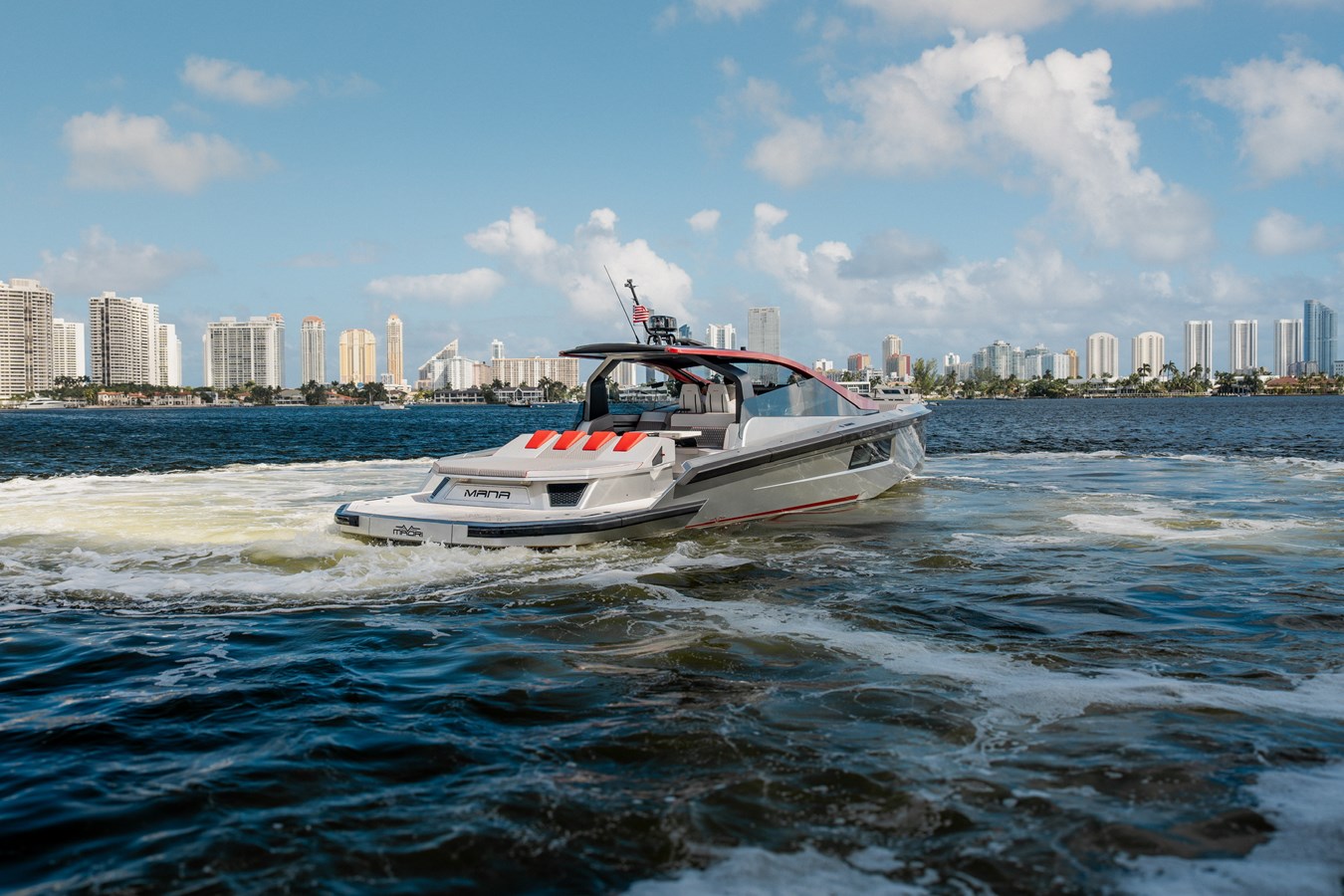

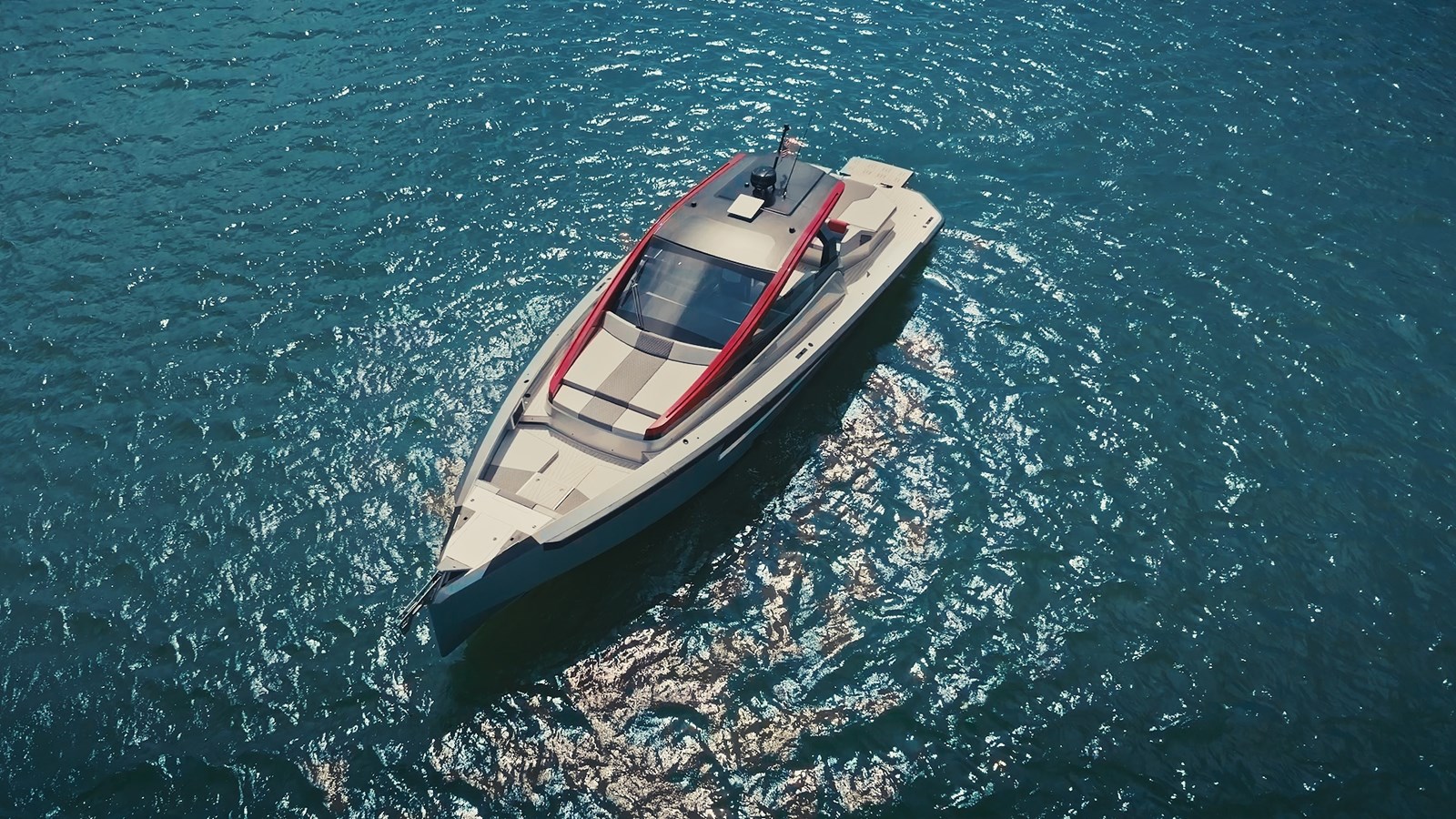

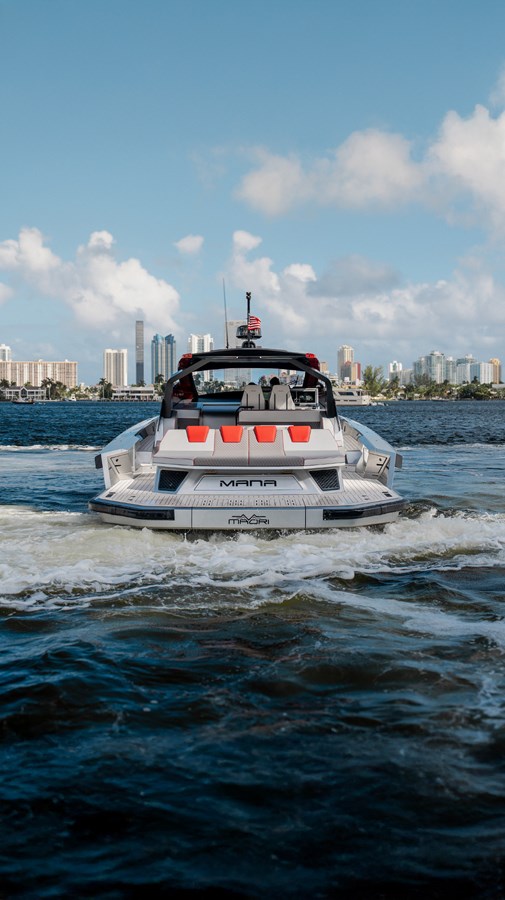

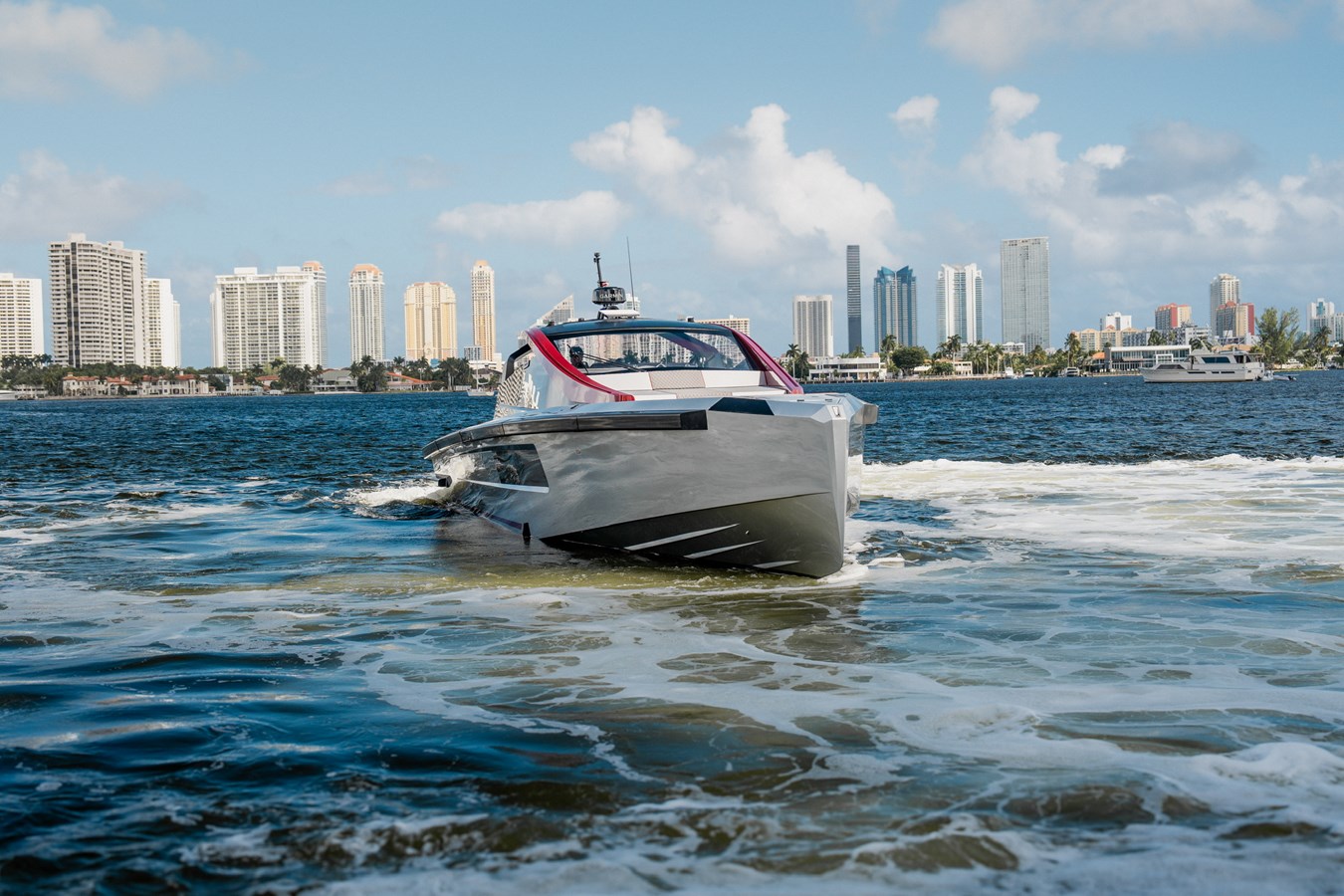

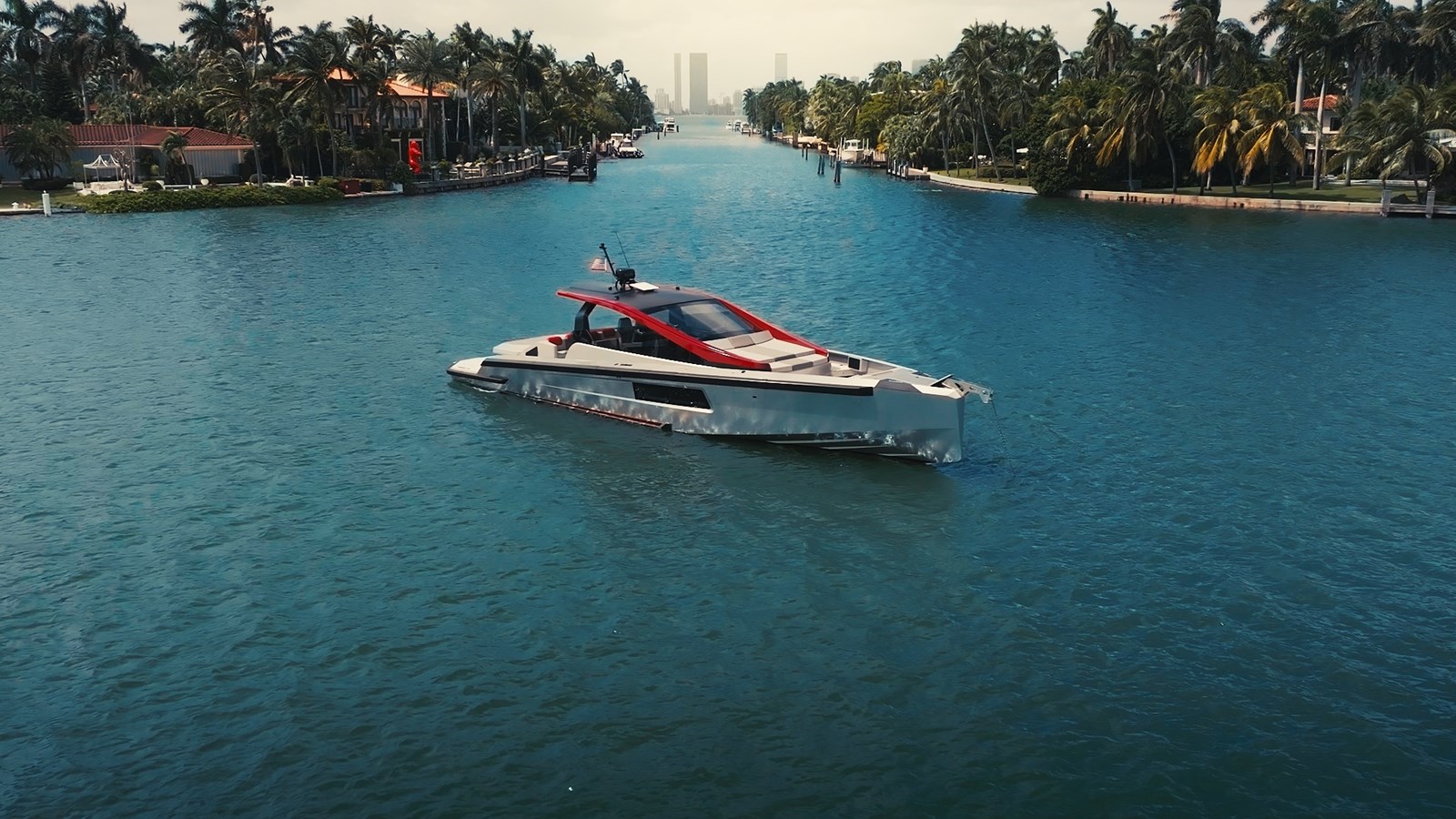

MAORI M54XL — Miami, USA (Duty & Tax Paid)

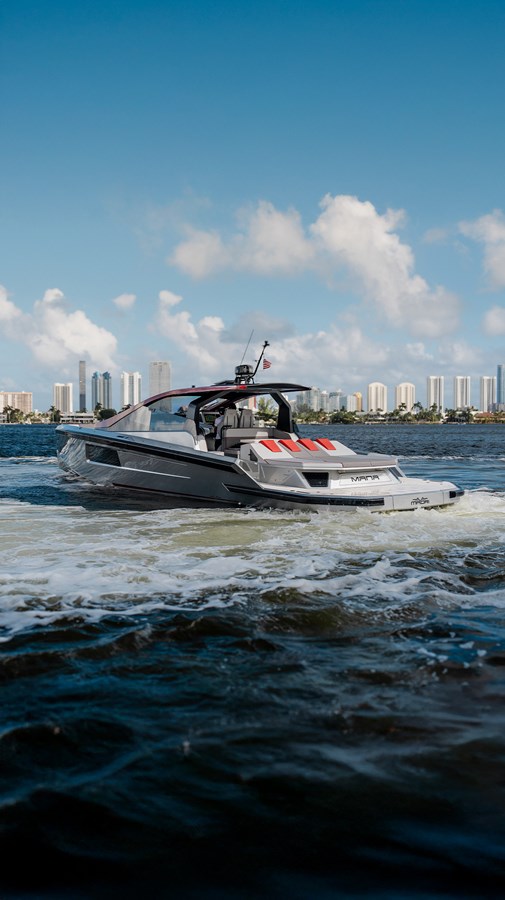

The MAORI M54XL — the larger, more powerful sister to the popular M46 — combines signature MAORI styling with premium performance and comfort. Sleek profile lines make it one of the most striking boats on the water.
Performance & Systems
- Twin MAN 850 hp engines — top speed ~48 knots
- Triple Seakeeper Model 3 gyrostabilizers for rock‑steady comfort underway and at anchor
- Shallow draft, bow & stern thrusters for precise maneuvering

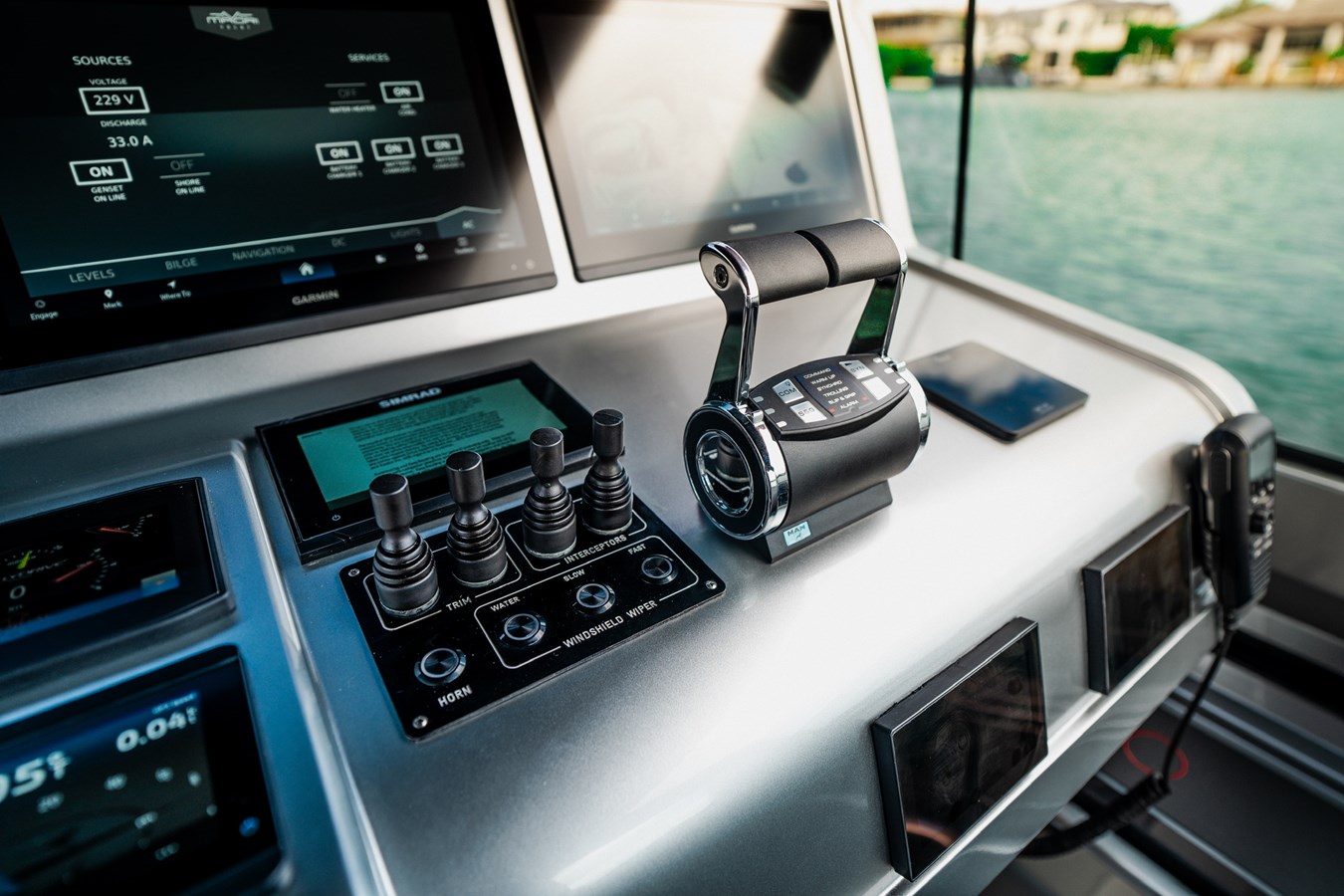

- Avionics: 3 × Garmin 16" displays; Starlink connectivity; interior TV
Exterior
- Opacmare 3‑step hydraulic transformer extends from the transom as a boarding ladder/diving platform; can be set just below the waterline for a bathing platform

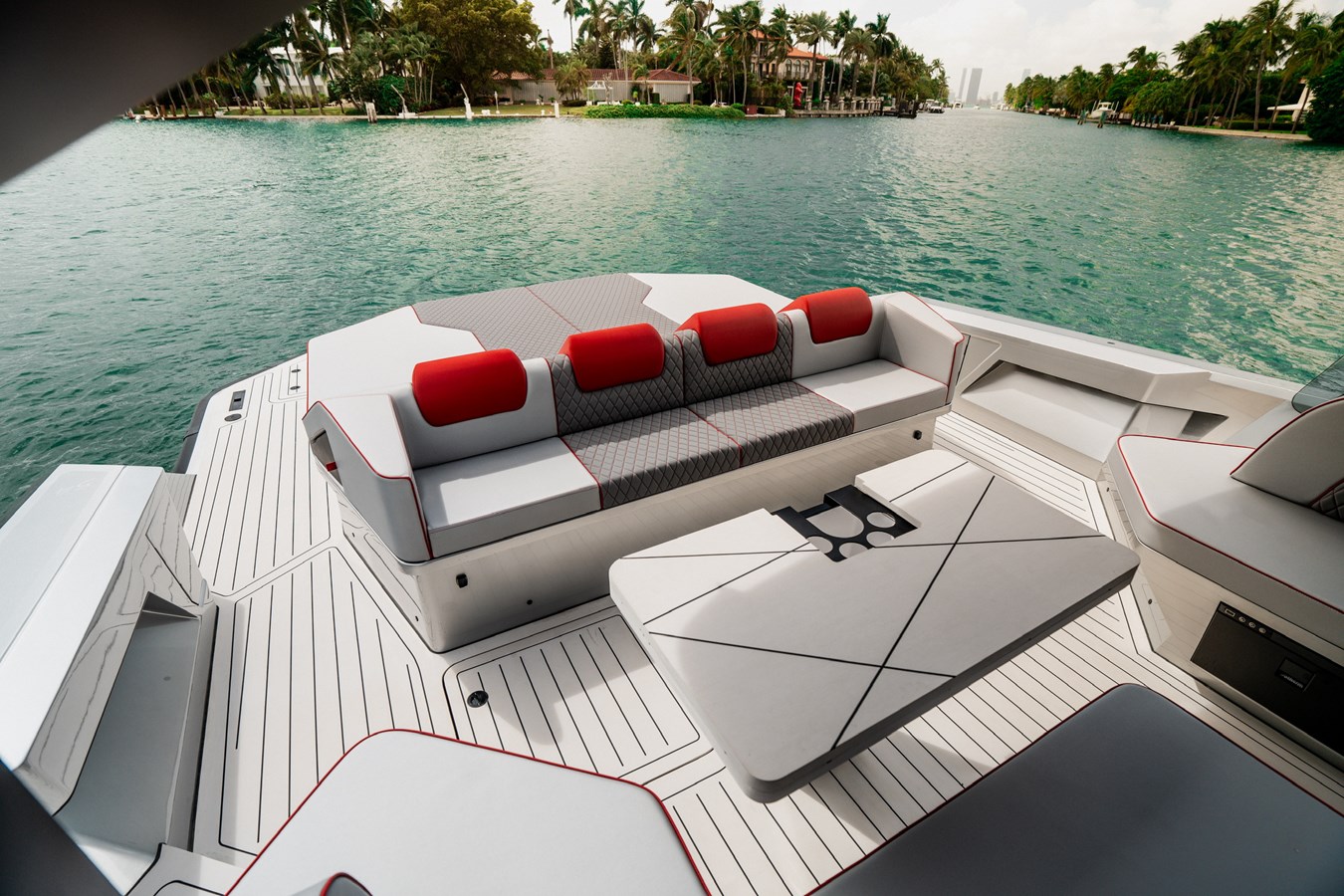

- Expansive seating and lounge areas, massive sunpads fore and aft

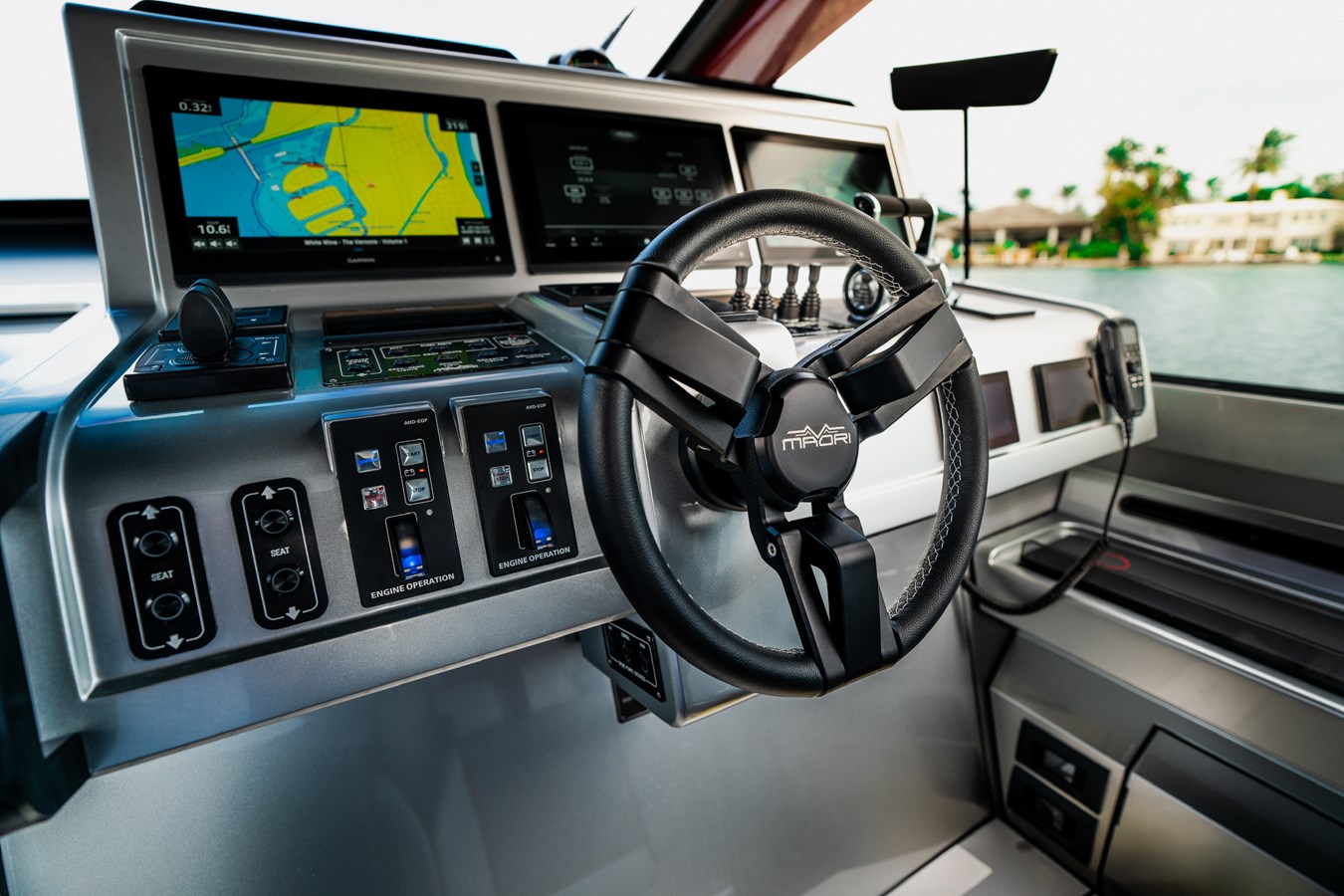

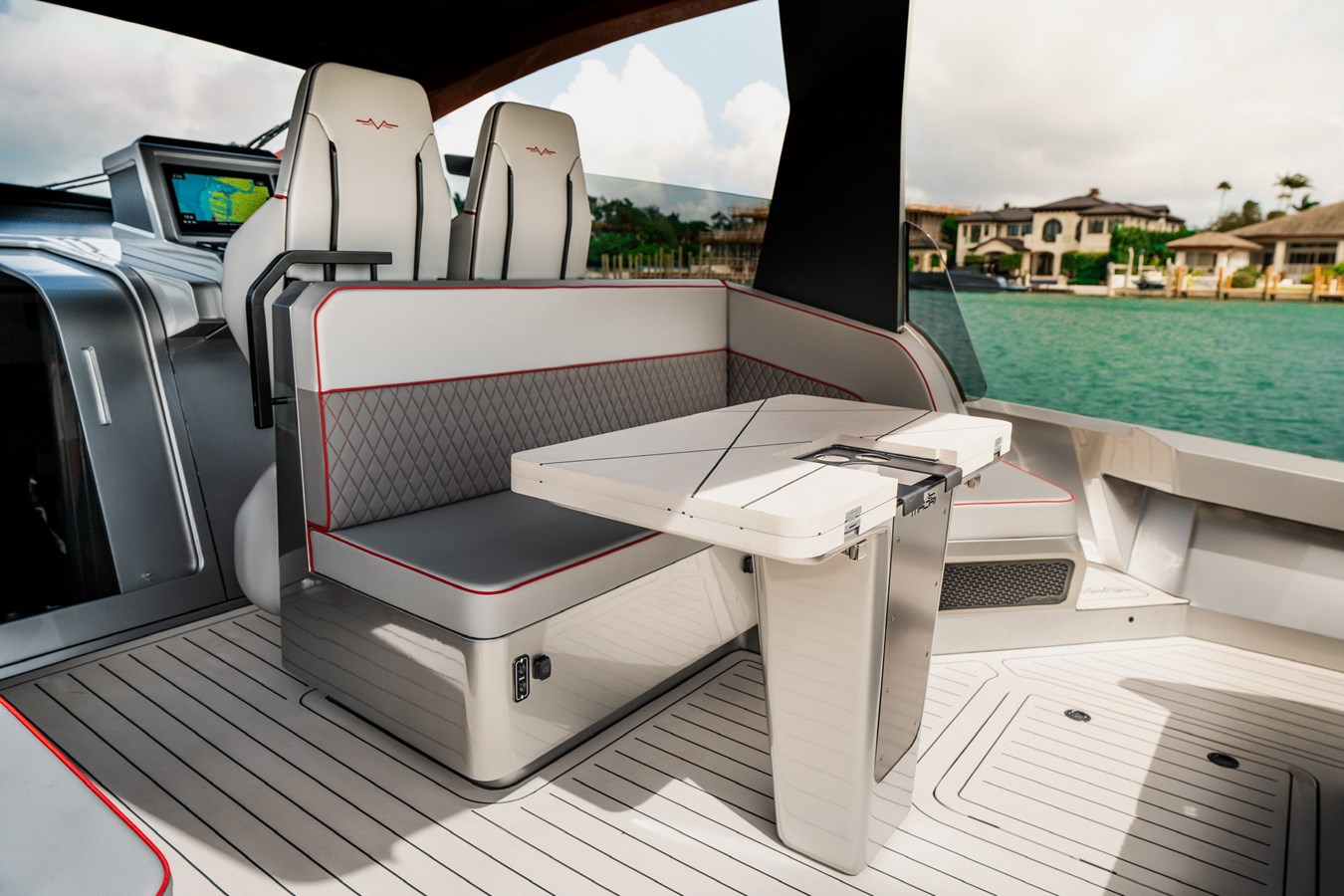

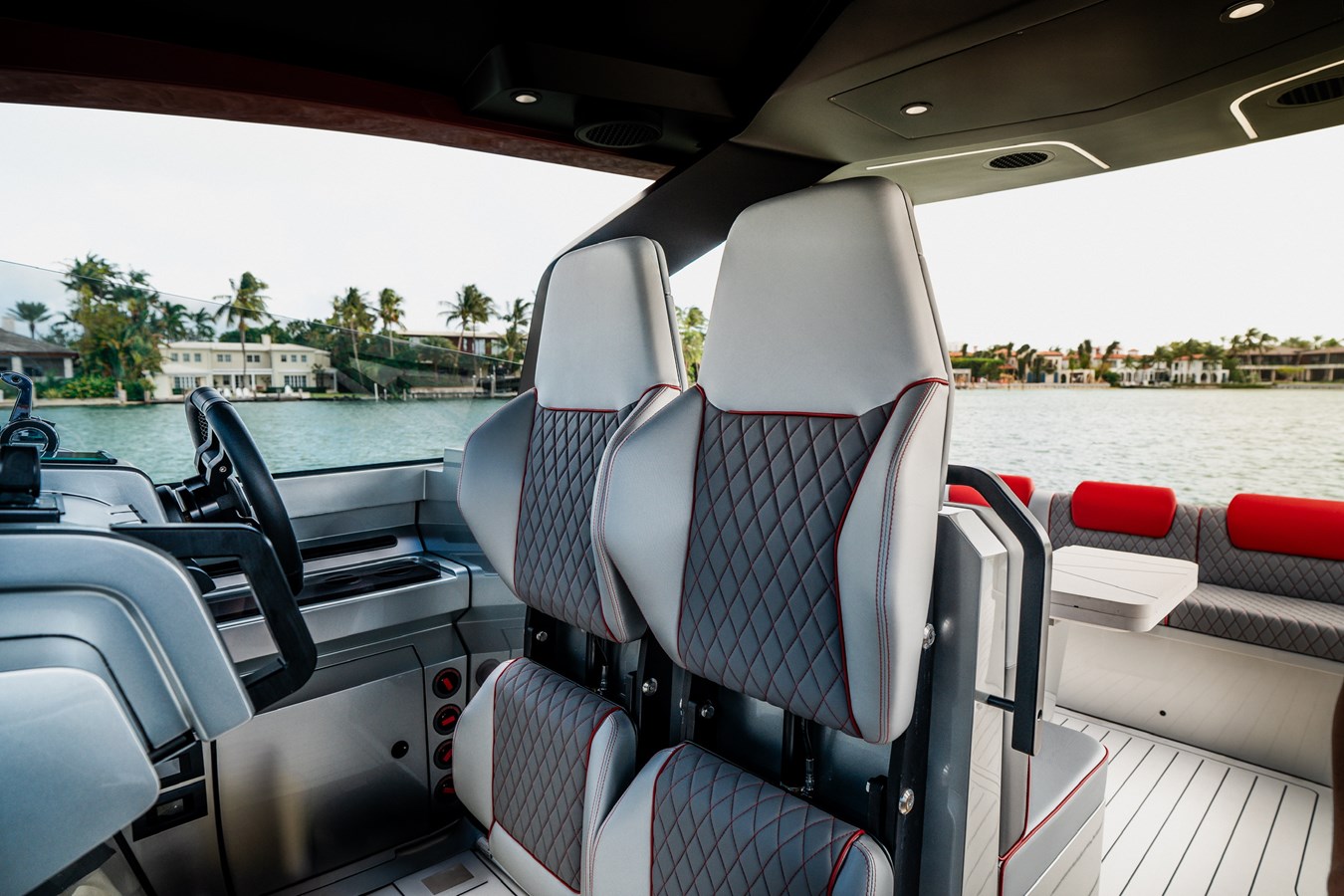

- Dining table with bench seating; helm with 2 custom diamond‑stitched bucket seats
- Teak decking and premium finishes throughout

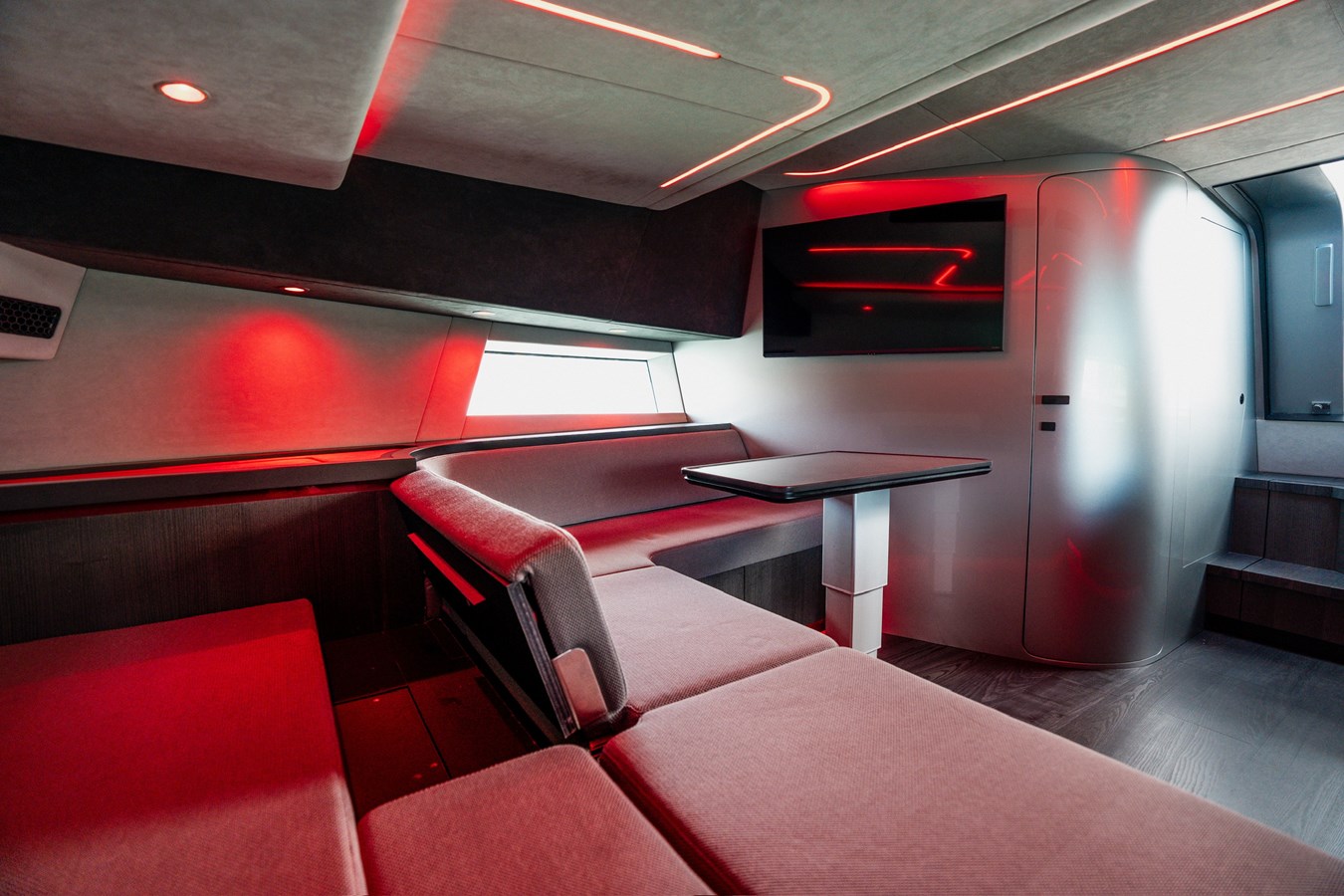

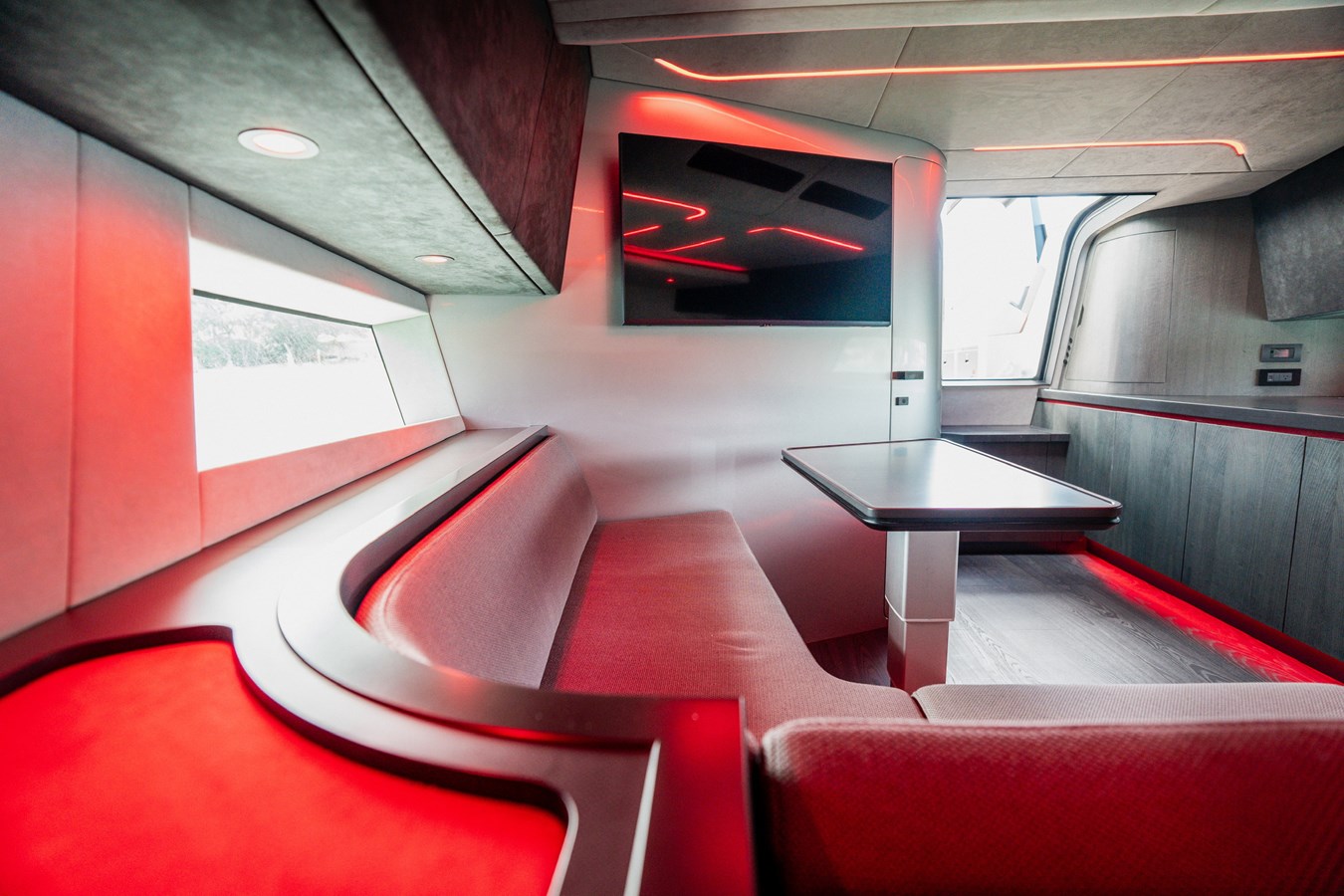

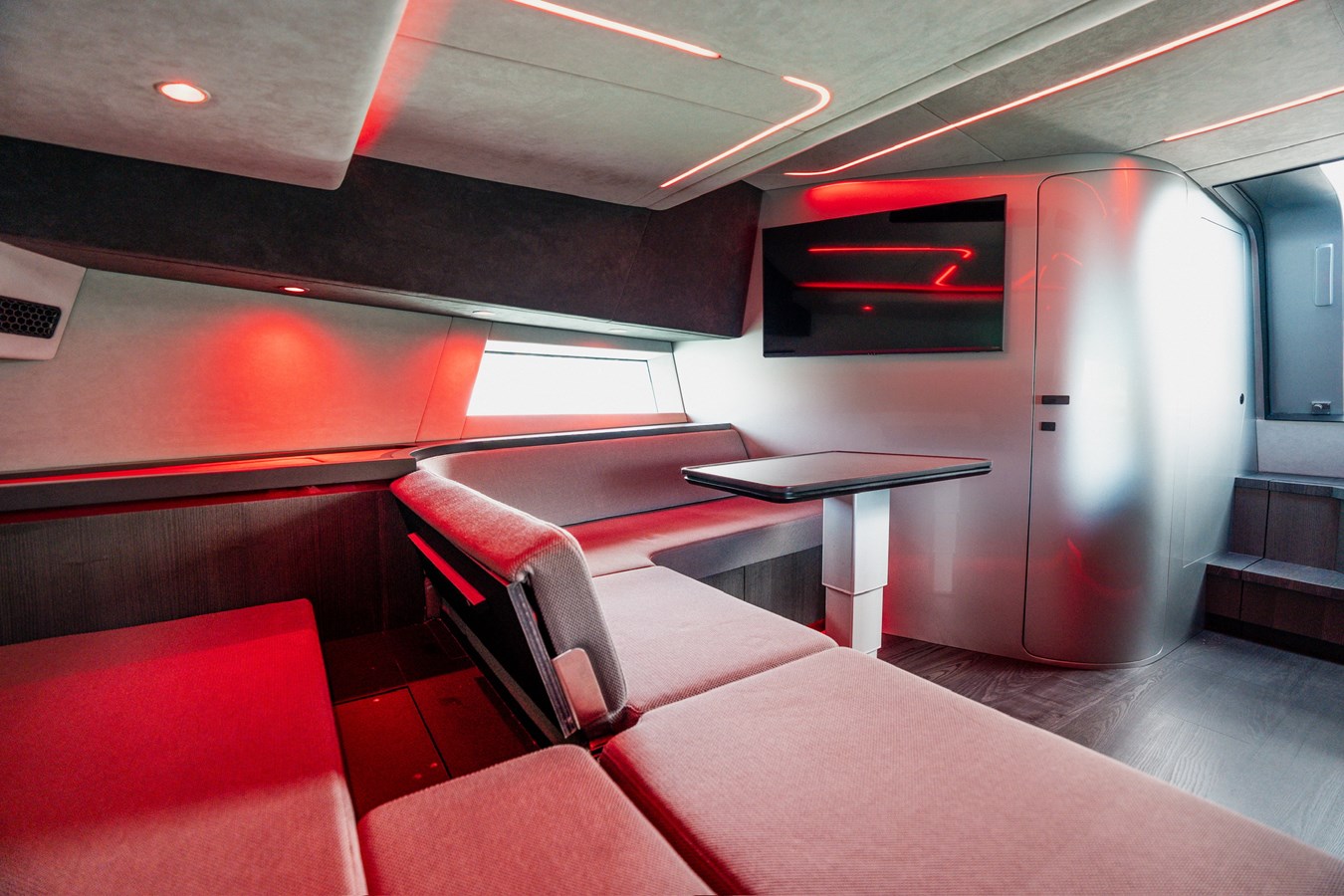

Interior
- Custom LED lighting; full head with shower, toilet & sink
- Galley, generous headroom, ample storage

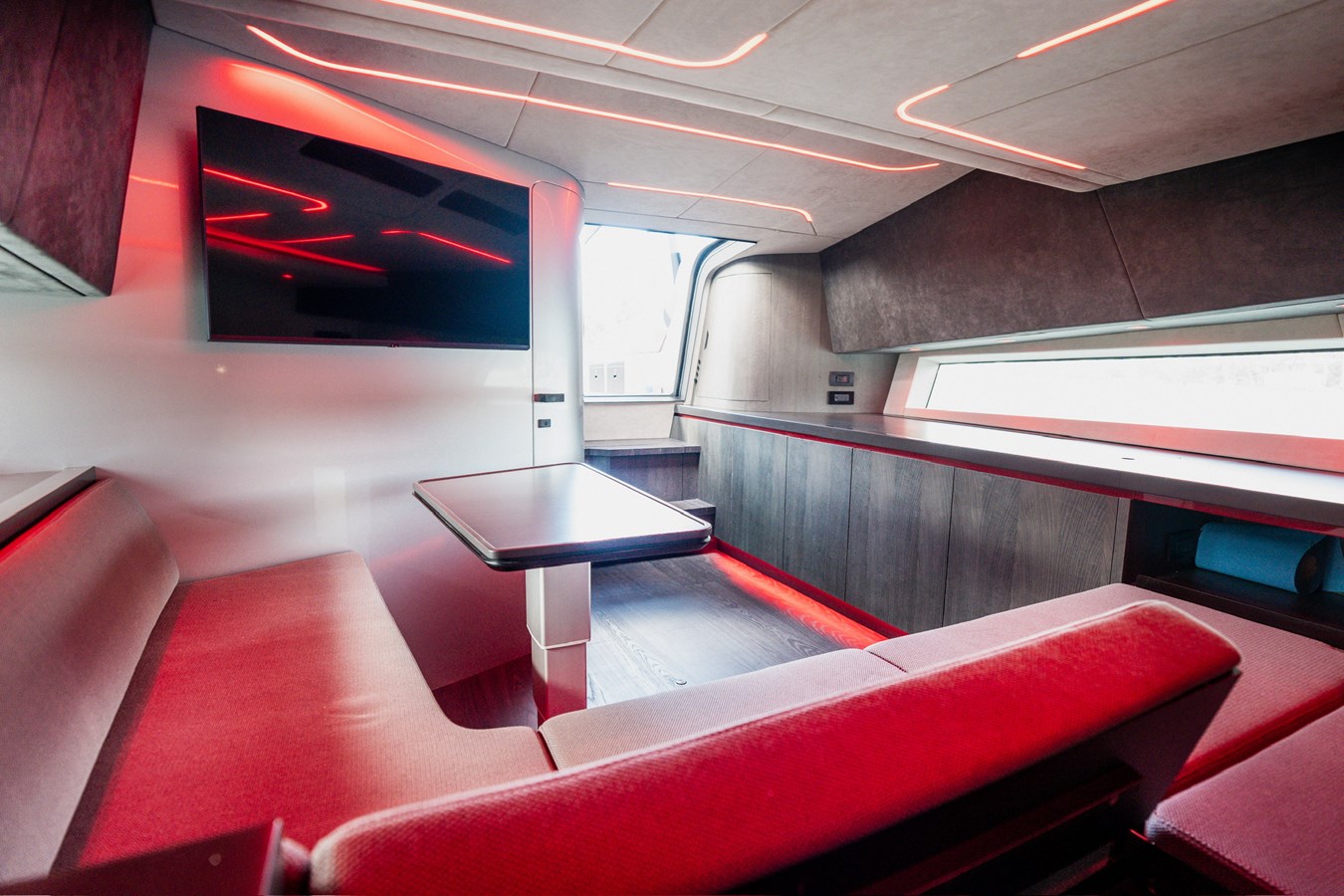

- Convertible sitting lounge/bed for overnight trips
- Full air conditioning
Perfect for Sunday cruises, sandbar days, or weekend runs to the Bahamas. Available for immediate purchase in Miami. Contact for price and viewings.
Gallery
Specifications
-
Length Overall
54' (16.45m)
-
Beam
16' 9" (5.1m)
-
Draft
3' 3" (0.99m)
-
Tonnage
35
-
Maximum Speed
48 Knots
-
Construction
Fiberglass
-
Staterooms
1
-
Engine
MAN i6-850
-
Interior Designer
MAORI
Additional Details
- Engine Count: 2
- Engine Make: MAN
- Engine Model: i6-850
- Engine Fuel: Diesel
- Engine Horsepower: 850
- Engine Power: 850
- Engine Type: Inboard
- Engine Hours: 110
- Fendercare fully integrated wrap-around fender system, Ecodeck composite decking, Seasmart quick-release smartlock system, 6x anodized pop-out cleats, Windscreen wiper, Rollbar with carbon fiber T-Top, Swim platform shower, Marinco 50A shore power, Engine room hatch with hydraulic rams, Deck courtesy lighting, Seasmart anodized grab handles and hinges
- Build process: Vacuum infusion of sandwich and single-skin composite
- Build materials: GRP (fiberglass)+ PVC core+ Vinylester resin
- Windscreen in tempered layered crystal, Solvit, with stainless steel details with Maori Logo.
- Fuel intakes (2) at amidships, Seasmart and water intake (1)
- Hull glasses in tempered laminated crystal, fume. Sovit.
- 2x drawer Fridge (35L), stainless steel, Vitrifrigo
- Cockpit air conditioning
- 2 pilot chairs with electric bolsters

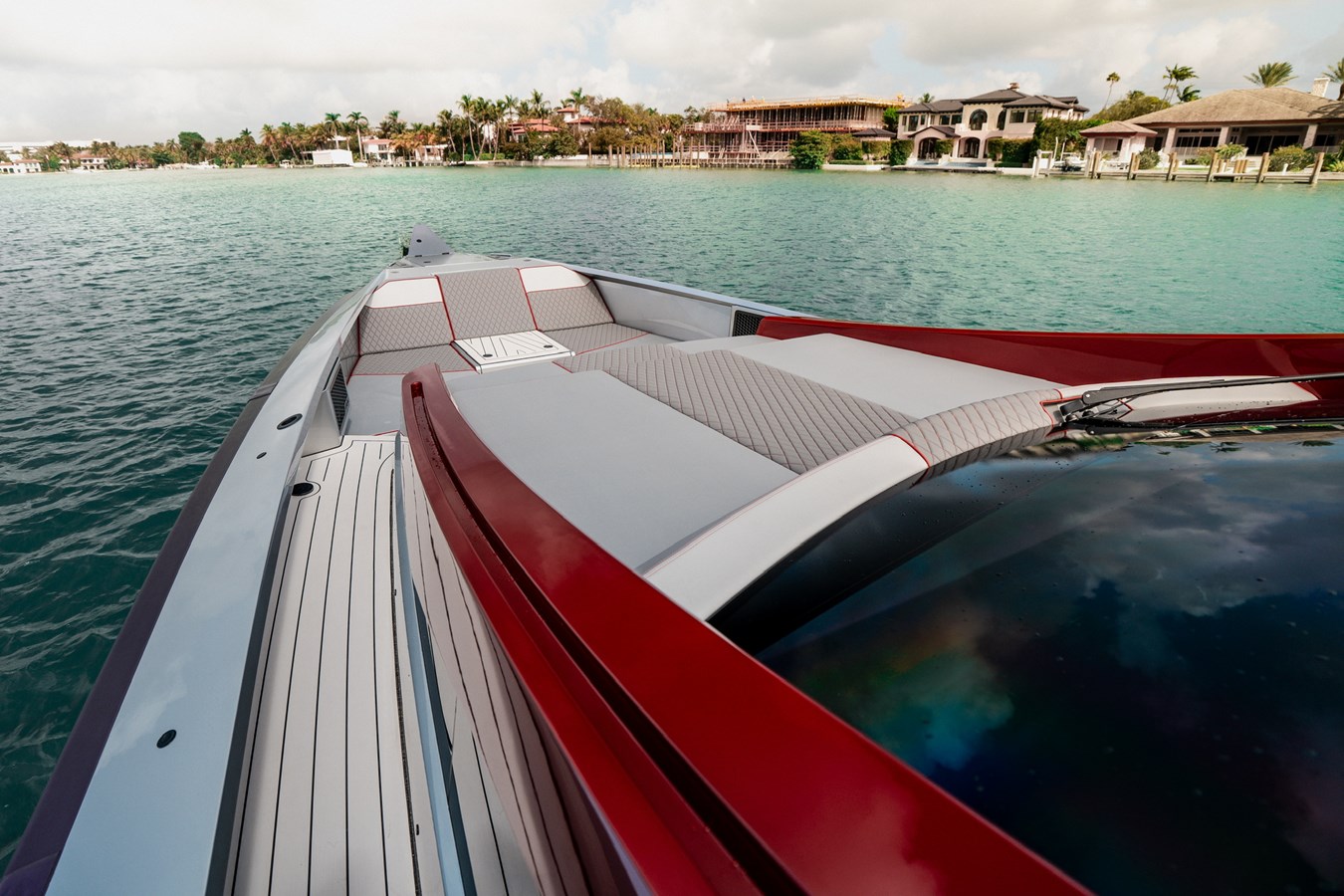

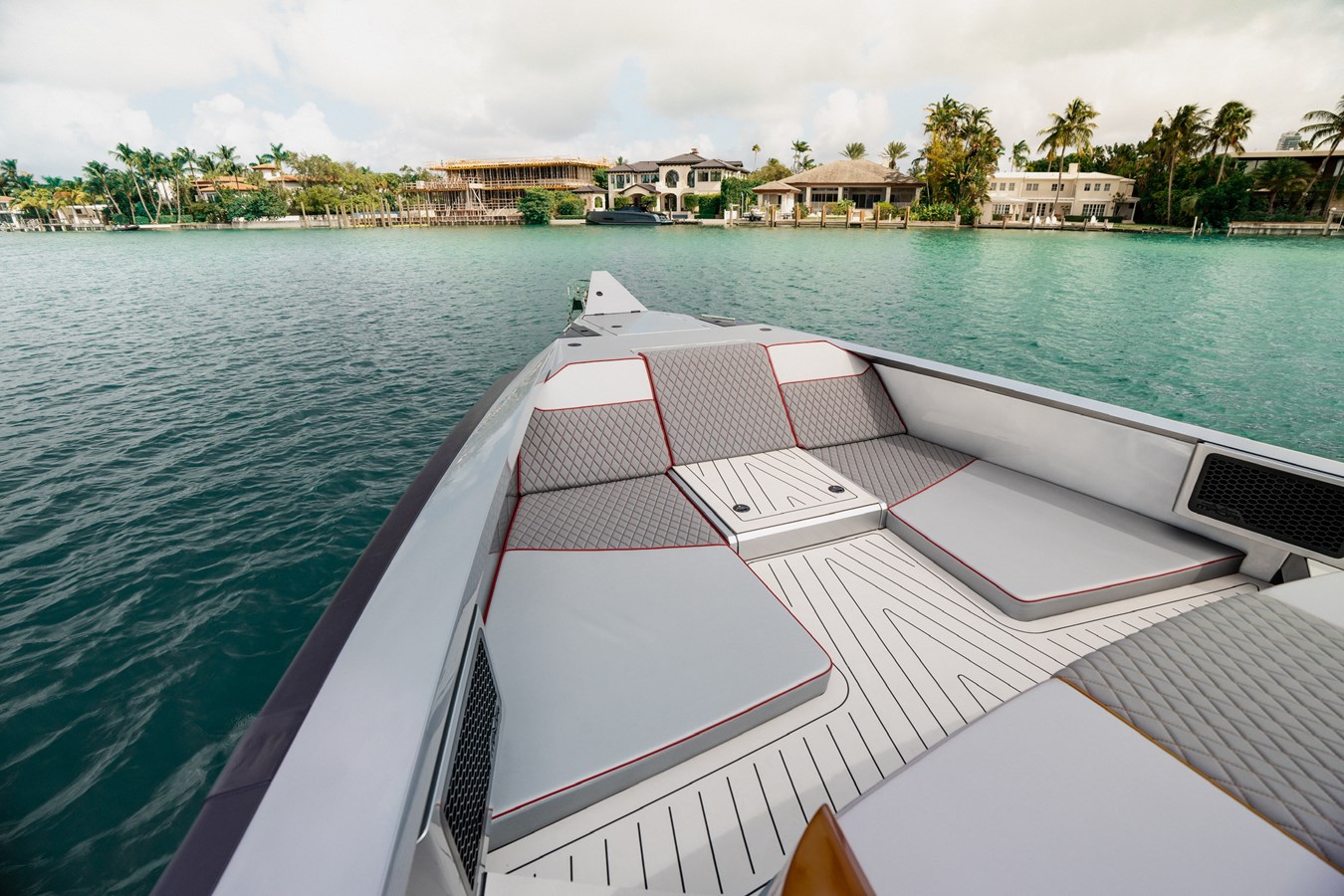

- Bow sunbed and "hot tub" style seating area

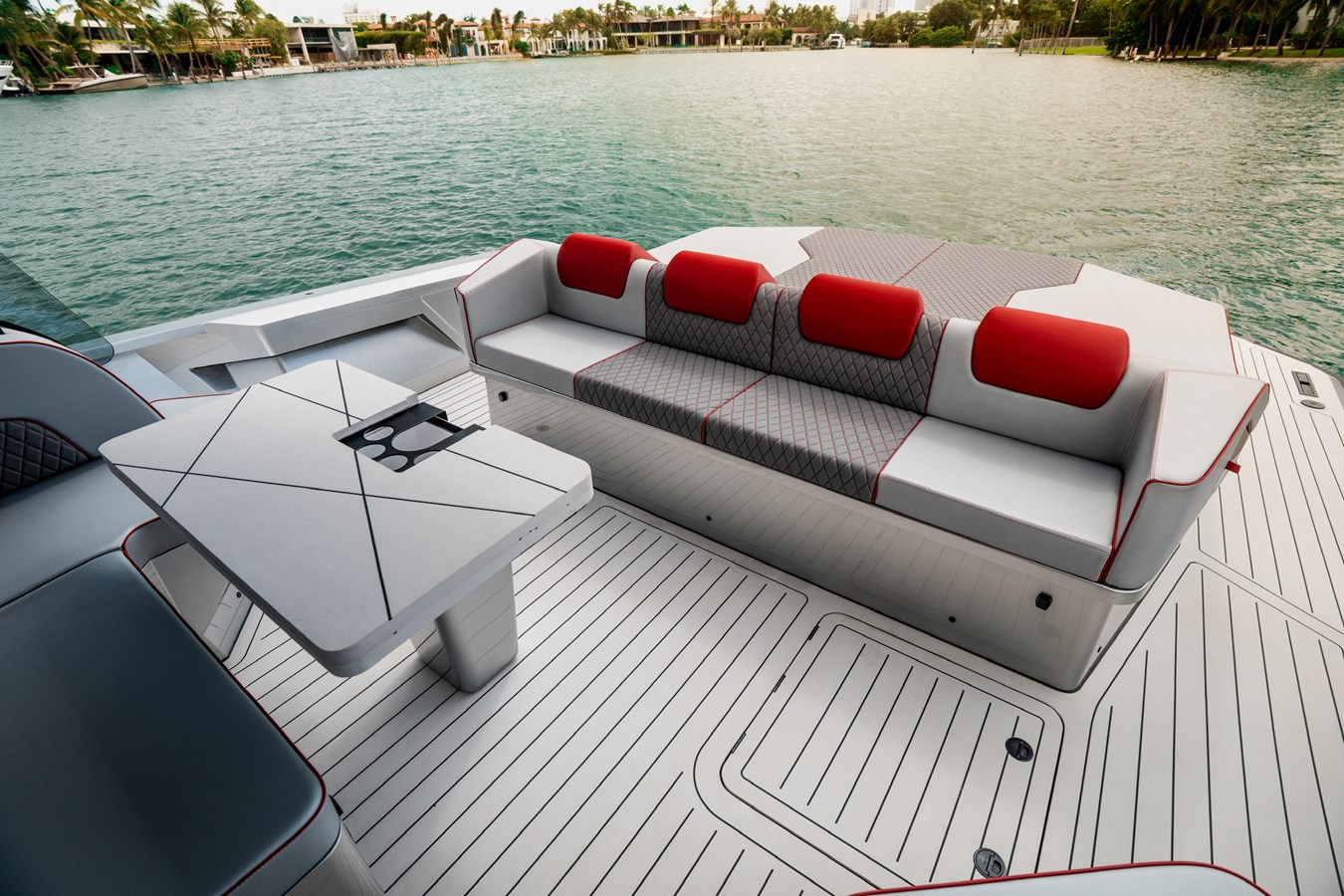

- Cockpit dining with "L" shaped sofa. Dining table comfortably seats 6
- Cockpit lounger to port of captain seating
- Folding dining table with Linak electric leg

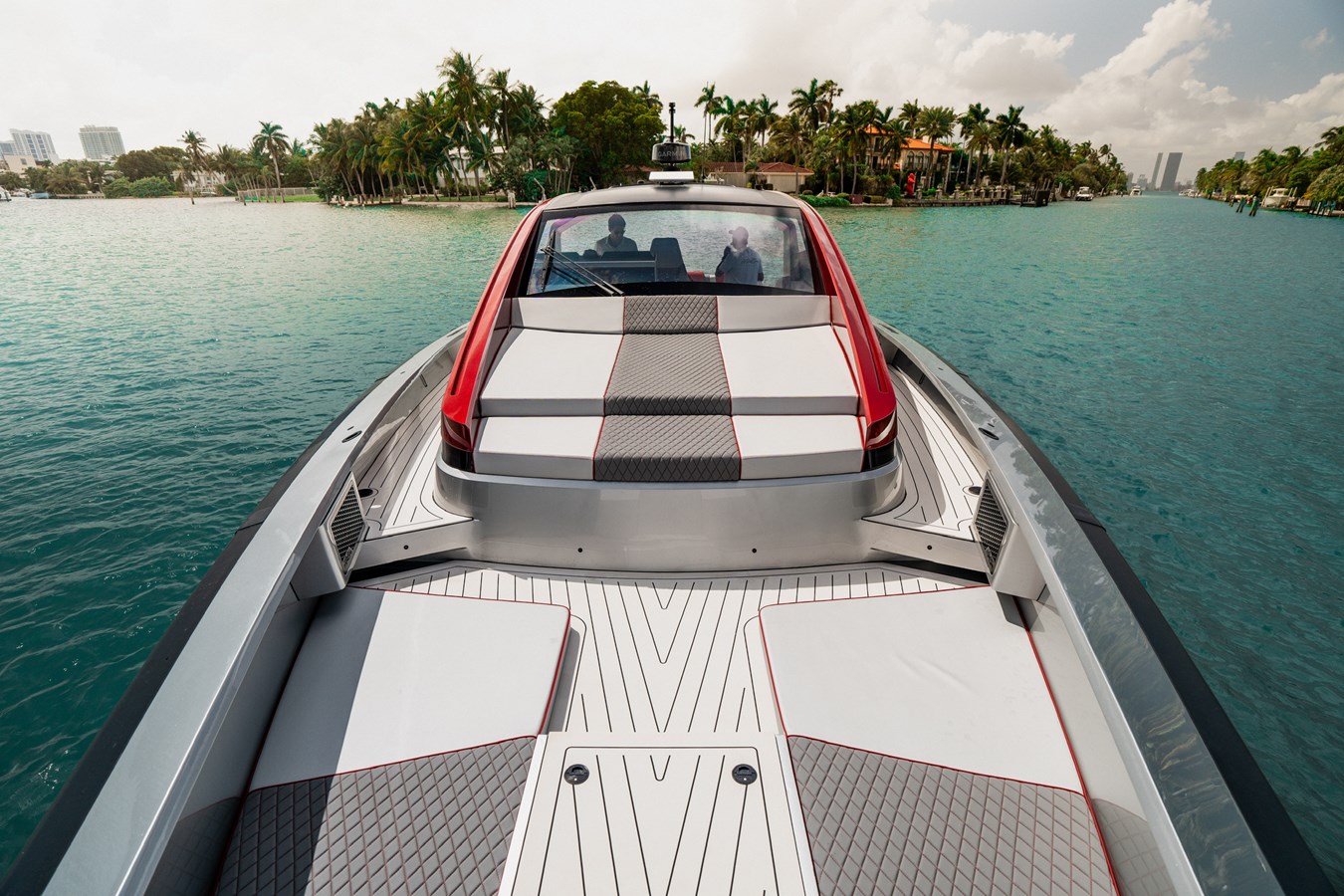

- Large stern sunbed
- FMG fabric for cushions
- Trefoil stainless steel AISI-316 20kg anchor
- 75m of stainless steel chain with chain roller, safety snap shackle and swivel joint
- Seasmart anchor launching system with Quick Marine windlass and waterproof control
- Flush stainless hull protectors for lines
- Manual sliding cabin door
- Alcántaraliners
- Condaria air conditioning

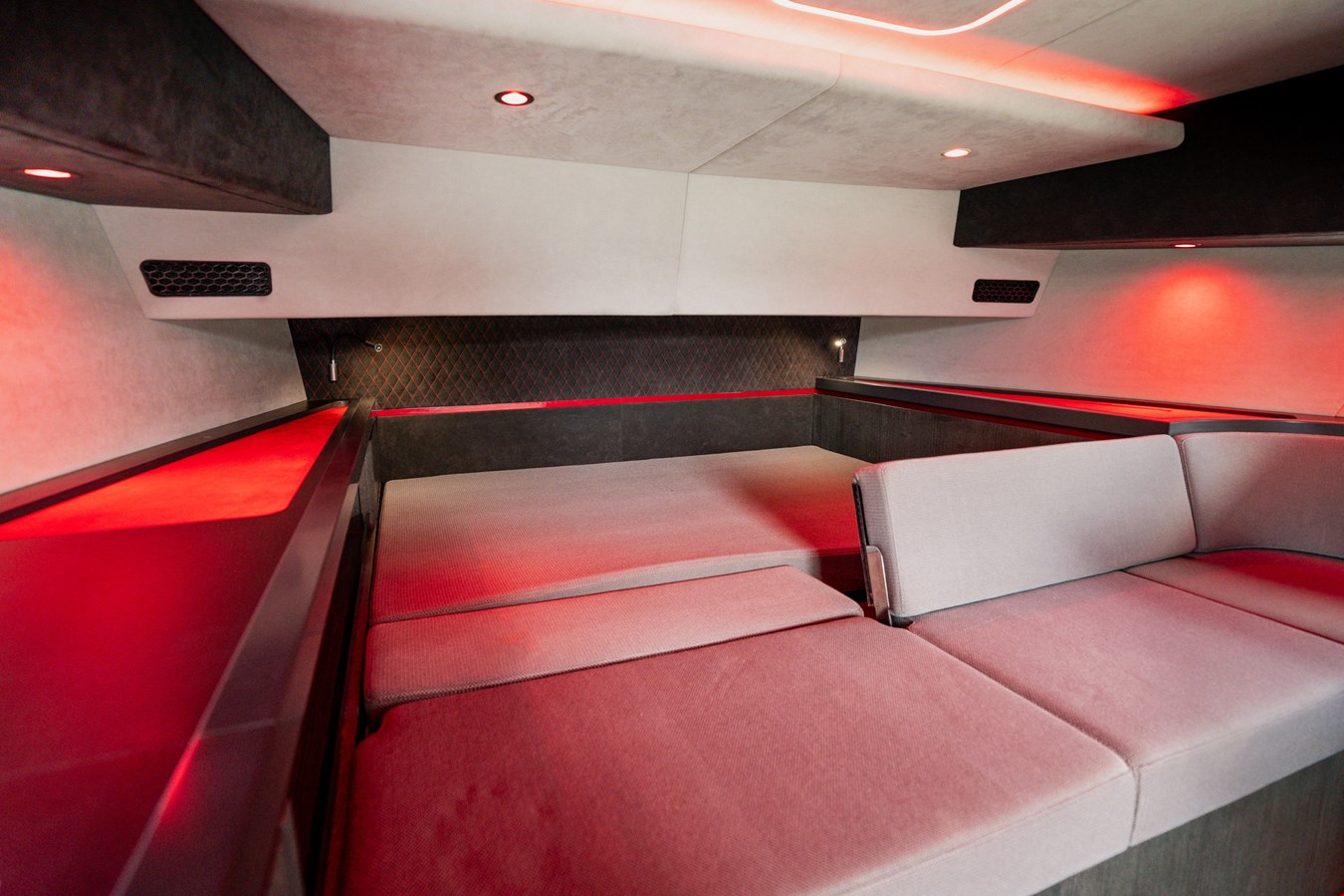

- Bow custom bed & "L" shaped sofa with storage
- Floor hatches with storage and inspection
- Dedicated bathroom with sink & mixer, Tecma toilet, handheld shower and custom mirror, air extraction
- Desk in veneered wood
- Galley with Vitrifrigo fridge & freezer
- Quick Marine ceiling lights and lower strip lighting in LED
- Soft touch reading lights
- Induction cooktop

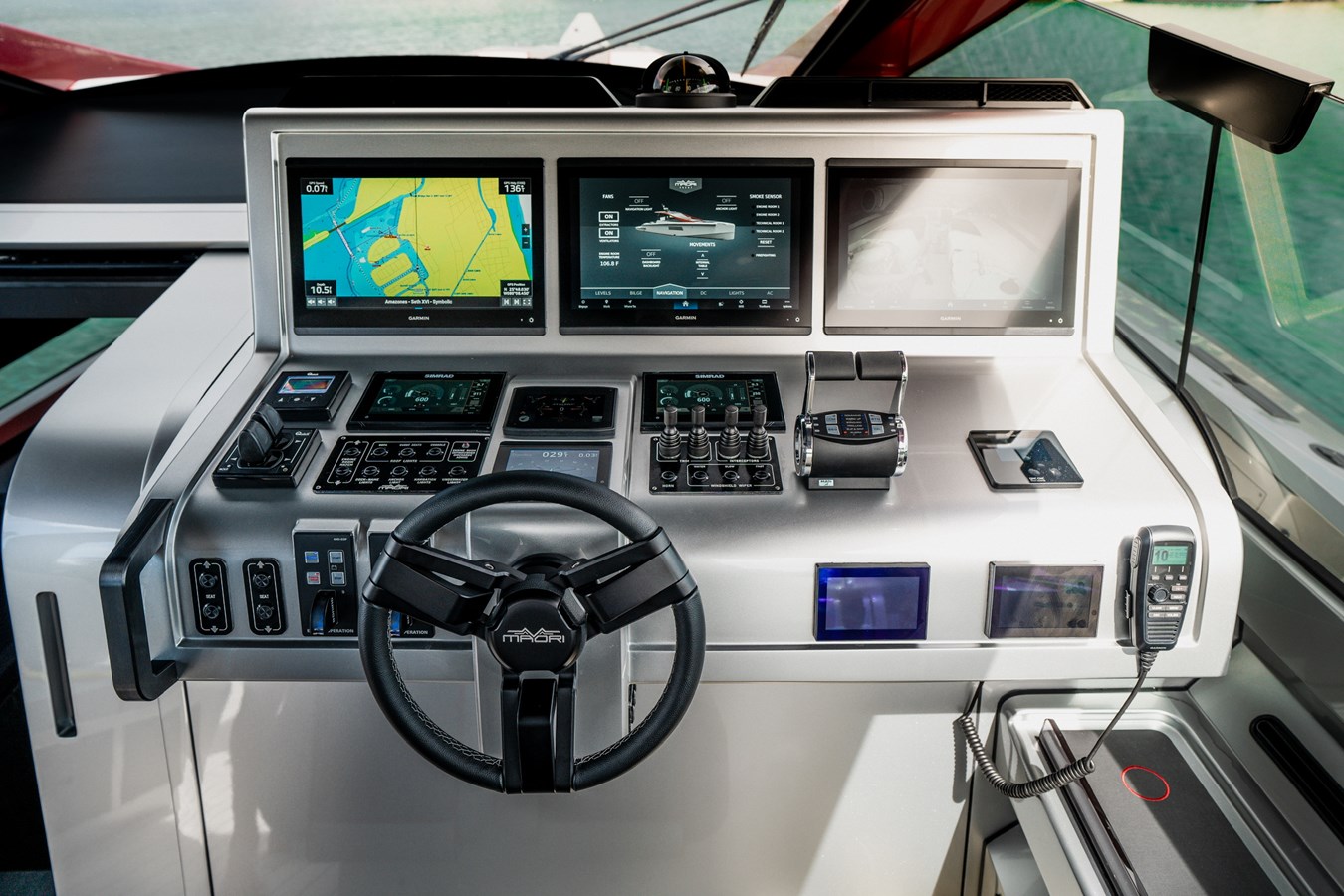

- 3x Garmin 16" Multifunction display with chart reader
- Garmin VHF radio, depth sounder & GRF 10 rudder feedback
- LOPOLIGHT navigation and anchor lights
- ONAN 230v/50 Hz Genset with dedicated Mastervolt 24V battery charger system, parallel and galvanic protection
- Fusion Apollo radio unit with JL Audio sound system and subs
- Garmin Autopilot
- Garmin Radar
- Fixed engine room firefighting system with automatic and manual activation from pilot console (FM-200 non-toxic gas)
- 3x Automatic 24v Rule bilge pumps in each compartment
- Bilge level sensors with alarm in the PLC
- Backup manual bilge pump with valves and suction lines
- Smoke sensors in engine compartment
- Battery cut-off switches
- Galvanic protection by sacrificial anodes
- Emergency fuel shut-off valves
- Structural fresh water tank with food grade interior coating
- Outboard vents and overflows
- Isotherm 40L, 230V hot water heater
- 75L black water tank with 24V macerator pump
- 100L grey water tank with 24V discharge pump
- Underwater waste discharge and dockside discharge
- Tank levels sensors on all tanks reported on PLC
- 2000L fuel tank
- Quick Marine variable bow thruster, 24V 250mm
- JollyDrive (JDM) surface drives with hydraulic steering unit
- ZF Marine gearboxes
- Electronic throttles with data reporting & fuel economy on PLC

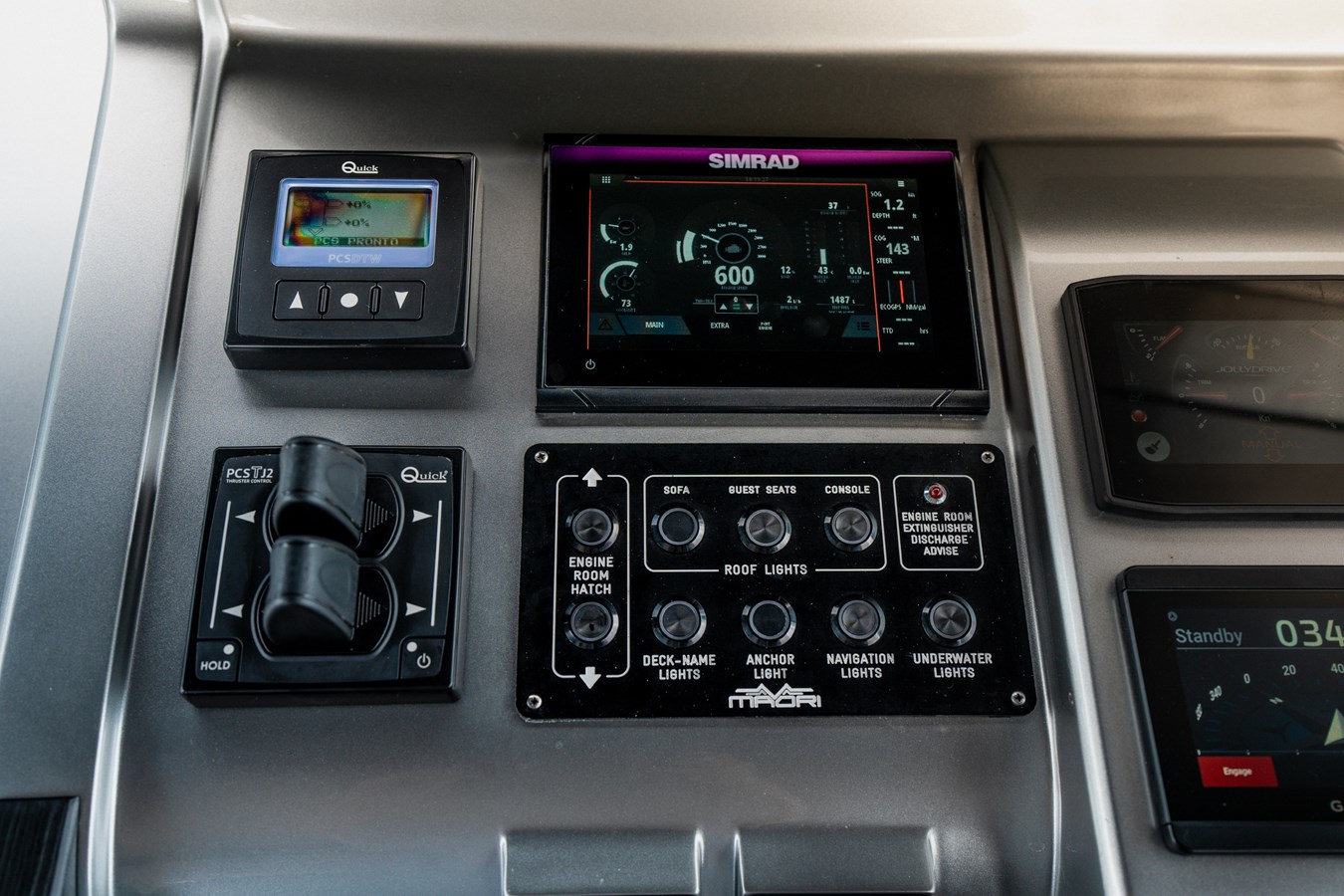

- Onboard monitoring system (PLC) with display inside cabin
- 3-layer insulation/sound proofing in engine and technical rooms
- Gianneschi blowers and extractor fans
- Stern engine exhausts

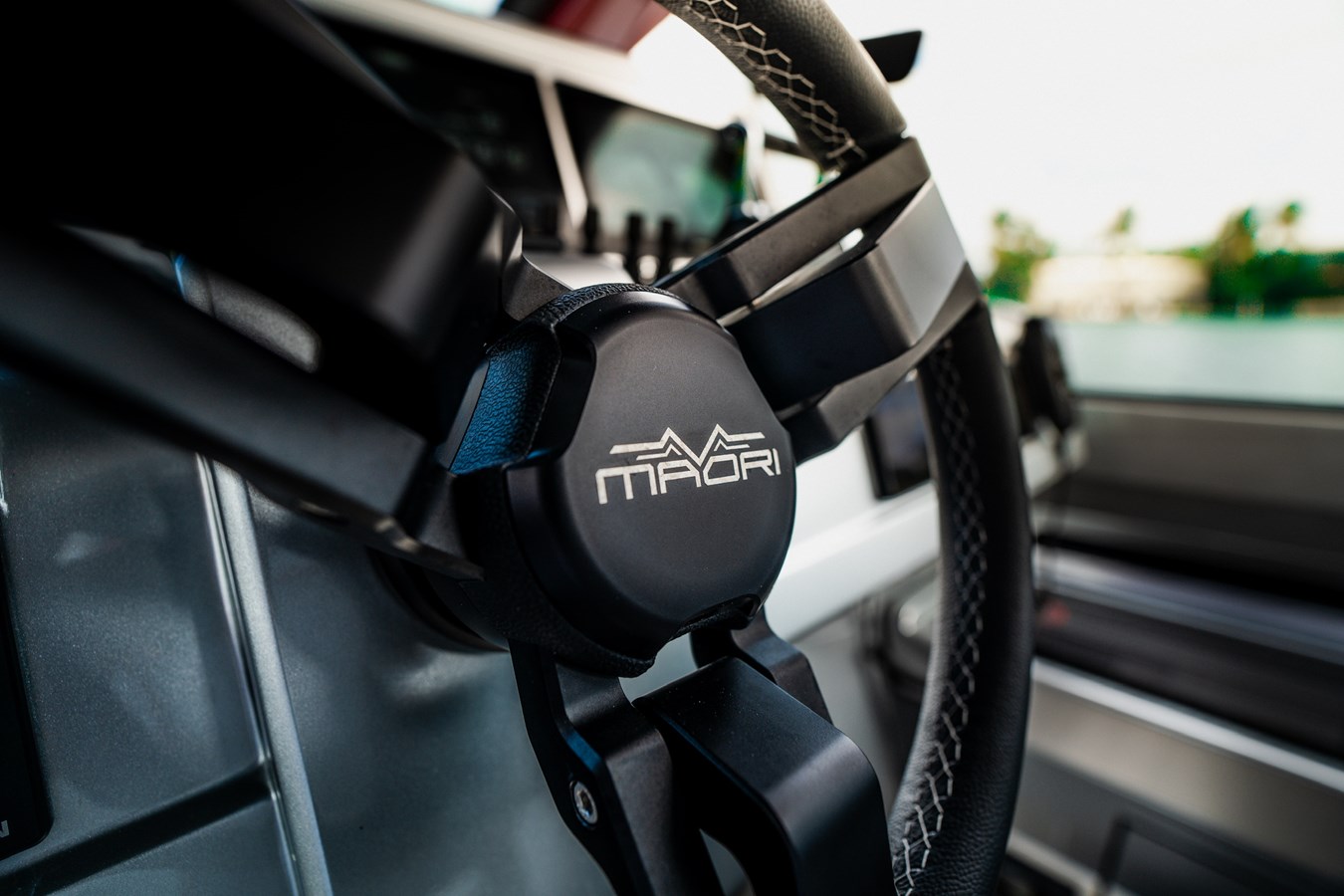

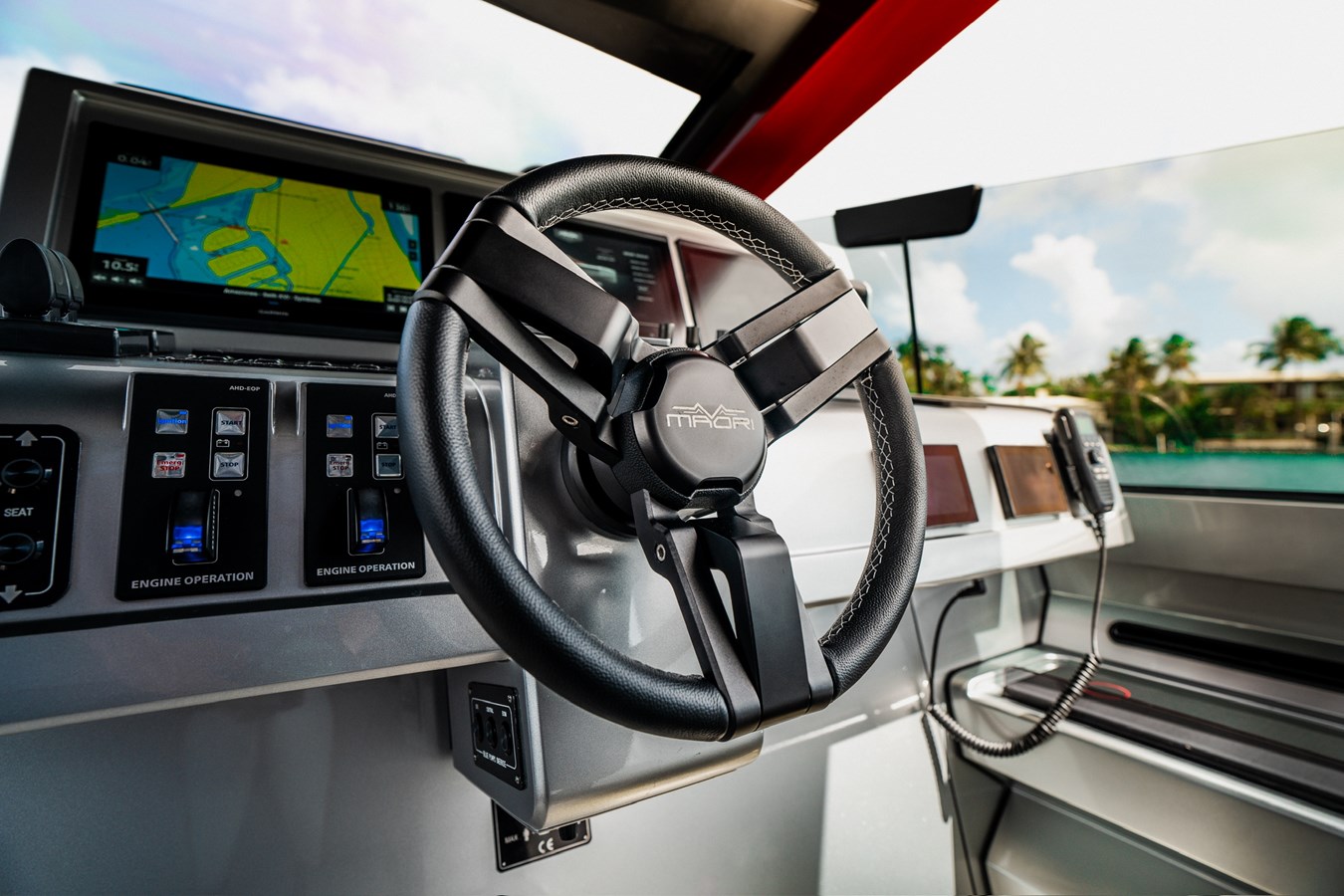

- lsotta steering wheel
- Opacmare 3-step hydraulic swim platform
- Dupont metallic paint
- Bow & stern shade awnings with carbon fiber poles
- Interceptor trim tabs
- Variable Quick Marine stern thruster 24V
- Empirbus system for boat management
- Propspeed application to props and JDM drives
- 3x RGB Lumishore underwater lights
- Onaled RGB strip lighting for interior and exterior
- Mive Echo engine silencers
- Seakeeper
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
