Home | All Yacht Search | 2017 Custom Line Navetta 28
2017 Custom Line Navetta 28 View Gallery
yacht-location
Location

Olbia,

yacht-location
Builder

Custom Line

yacht-location
Cabins

8

yacht-location
Length

92 ft 11 in / 28.31 m

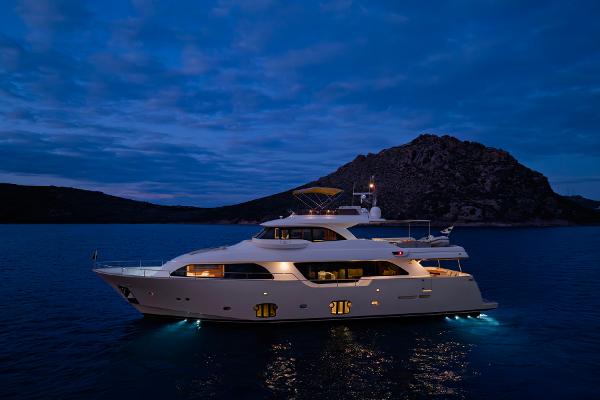

This 92’ 11” CUSTOM LINE NAVETTA 28 for sale, boasts superyacht flair in a very efficient package. This compact, yet spacious semi-planing tri-deck motor yacht was designed by Zuccon International Project with Ferretti Engineering Department developing the naval architecture.

Possible to register under 24 metres load-line length, the CUSTOM LINE NAVETTA 28 is a 28.31m luxury yacht, built in Italy in 2017 and first commissioned in 2018. Her top speed is 16 knots, while cruising at 13.5 knots, and she boasts a maximum cruising range of 1400 nautical miles at 10 knots with power coming from twin 1200 Hp MAN diesel engines.

The CUSTOM LINE NAVETTA 28 is recognizable from the unmistakable exterior profile and the panoramic dining area with round glass sliding doors which allow for great flexibility in the use of the upper deck. The large sunbathing area is a comfortable sundeck, which is fitted with a Jacuzzi tub and awning.

Her dual-mode transom (DMT), patented by Ferretti, can be folded down to make a beach area, while a section of teak deck can be unshipped from the roof of the garage and slotted in to almost double the beach area’s size. To launch the tender, the hatch opens upwards. The aft platform lowers into the water, flooding the stern dock, while a supporting cradle descends and the tender floats free. This impressively creative piece of engineering is worthy of a Superyacht twice the 28’s size.

On the main deck, a continuous window goes from stern to bow, while below deck there are four innovative hull windows at the level of the guest cabins, installed for the first time on the market, with “invisible” portholes glued onto the glass itself.

When guests walk into the salon, they are welcomed by a large, carefully structured open space. To starboard you have the galley, towards the bow, you reach the area reserved to the ship Owner’s master stateroom with a large bathroom and walk-in wardrobe. She can comfortably accommodate up to 10 guests in 5 luxury en-suite cabins with 5 crew members in 3 additional cabins with separate access.

Belowdecks you will find 4 guest cabins, 3 of which are fitted with double beds (one of them with sliding beds) and a twin cabin, all of them with en-suite facilities.

Comprehensively equipped with sundeck jacuzzi, a state-of-the-art A/V entertainment system, this CUSTOM LINE NAVETTA 28 for sale, also carries electro-hydraulic zero-speed (underway + at anchor) stabilizers for maximum comfort.

Early viewings are highly recommended.



Please click on the « Other Details » tab for complete details of this Motor Yacht for Sale.

Disclaimer:

We provide this yacht listing in good faith, and although we cannot guarantee its accuracy or the condition of the boat. The Italian Yacht Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Allied Yachting Cannes. She is subject to prior sale, price change, or withdrawal without notice and does not imply a direct representation of a specific yacht for sale.
Specifications
  • Yacht Type

    Power

  • Brand

    Custom Line

  • Year

    2017

  • Hull

    Fiberglass

  • Days Listed

    81 Days

  • Price

    $5,708,040

  • Length Overall

    92 ft 11 in / 28.31 m

  • Beam

    22 ft 12 in

  • Max Draft

    7 ft 3 in

  • Engines

    2 x MAN diesel

Full details

• Make: Custom Line

• Model: Navetta 28

• Condition: Used

• Category: Power

• Construction: Fiberglass

• Has Hull ID: No

• Length: 28.31 m / 92.88 ft

• Length Overall: 28.31 m / 92.88 ft

• Beam: 22.97 ft ft

• Make: MAN

• Model: V8-1200

• Drive Type: V

• Fuel: diesel

• Engine Power: 1200|horsepower

• Type: Inboard

• Engine Location: Port

• Model: V8-1200

• Drive Type: V

• Fuel: diesel

• Engine Power: 1200|horsepower

• Type: Inboard

• Engine Location: Starboard

• Total Engine Power: 2400|horsepower

Full Specs

MAIN CHARACTERISTICS

Builder: Custom Line (Ferretti Group, Italy)

Model: Custom Line Navetta 28

Type: Motor Yacht / Compact Trideck Yacht / Semi-displacement

Naval Architect: Ferretti Engineering Department

Exterior Designer: Zuccon International Project

Interior Designer: Zuccon International Project

Hull Material: GRP

Superstructure Material: GRP

Decks: Teak-laid

Year Built: 2017

First Commissioned/Launched: 2018

LOA: 28.31 m (92’ 11”)

Hull Length: 23.98 m (78’ 8”)

LWL: 23.80 m (78’ 1”)

Beam: 7.00 m (23’)

Draft: 2.21 m (7’ 3”)

Displacement (Unladen): 89,500 kgs (197,314 Lbs)

Displacement (Laden): 106,090 kgs (233,886 Lbs)

Design Category CE 2003/44: CE Class A

Classification Modules: B + F + Aa (Sound Emission) RINA SpA

Lying: Sardinia, Italy

Flag of Registry: Italy



PROPULSION

Type / Fuel: Twin Diesel

Main Engines: 2 x 1200 Hp (882 kW) MAN V8-1200 @2300 RPM

Engine Hours: 1800 h (July 2023)

Drives: V-Drives

Transmissions: 2 x ZF 2000 V

Economic Cruising Speed: 10 knots

Range @ Economic Cruising Speed: 1400 NM

Cruise Speed: 13.5 knots

Range @ Cruising Speed: 600 NM

Maximum Speed: 16 knots

Range @ Max Speed: 400 NM

Electro-hydraulic powered steering

GRP partly submerged and silenced exhausts

Stuffing box with dripless shaft seal, low maintenance

3 x Trim-tabs (flaps)

Propellers: 2 x 6-blade NiBrAl



TANKAGE

Fuel Capacity: 12,500 l (3,302 USG)

Fresh Water Capacity: 2,000 l (528 USG)

Grey Water Tank: 700 l (185 USG)

Black Water Tank: 700 l (185 USG)



ACCOMMODATION

10 Guests in 5 en-suite Staterooms with Master’s cabin on main deck

Guest Cabin Configuration:

  • Master Stateroom on main deck with double island bed, walk-in wardrobe and en-suite bathroom
  • 3 x VIP cabins belowdecks each with double island bed, closets and en-suite bathroom (One with separable beds)
  • 1 x Twin guest cabin belowdecks with closet and en-suite bathroom

Saloon, fully equipped galley and day-head on main deck

Interior / exterior dining, lounge area and helm station on upper deck

Crew Accommodation:

  • 3 Crew cabins fore, for 5 Crewmembers with en-suite facilities

Maximum Persons Onboard: 20



OTHER MECHANICAL EQUIPMENT

Stabilizing fins TRAC underway

2 x SEAKEEPER gyro stabilizers at anchor

Hydraulic bow and stern thrusters (40 Hp)



ELECTRICAL SYSTEMS

Generators: 2 x 28 kW KOHLER

Generator Hours: 3200 & 1950 h (July 2023)

24V battery banks for main engines and auxiliary services

24V lighting system

Automatic battery chargers

Dock connector plug (20m) 100 A – 400V 3-phase +

Ground cable reel with GLENDENNING (local and remote control)

2 x 24V /230V inverters for fridges and domestic loads

UPS for audio-video systems

Inverters for fridges and domestic loads



AIR CONDITIONING SYSTEM

Tropical air conditioning with heat pump and air handlers 180,000 BTU total

Air compressor



WATER SYSTEMS

2 x Fresh water autoclave pumps (230V + 24V)

2 x 80 l Water heating boilers

Hot water circulating pump

Watermaker IDROMAR 350 l/h

Automatic grey water discharge system

Electric automatic pump for black water tank discharge

WCs with electric freshwater flush

Grey and black water tanks washing system

Electric engine driven and manual bilge pumps



FUEL SYSTEMS

2 x Fuel tanks with decantor

Discharge and inter-connection system

2 x RACOR fuel prefilter for engines and HUMMEL prefilter

2 x RACOR fuel prefilter for generators



DOMESTIC EQUIPMENT

Fully equipped galley to starboard main deck

Induction cooking top

Extractor

Wine cellars

Marble galley table

Oven upgraded 90cm

Fridge/freezer 504 litres in galley with icemaker (Standard)

Washer/dryer



NAVIGATION & COMMUNICATION ELECTRONICS

MAN Electronic engine controls

MAN MMDS Electronic engine displays

Integrated 3D SIMRAD with 2 x LCD 15” colour monitors with navigation plotters, echo-sounder, radar 48 miles, GPS

Monitoring system with 15” touch screen for: weather, tank levels, alarms, lights, outside doors, smoke, flaps position, CCTV, nav lights, nav instruments, bilge pumps, AC system, electrical systems, and galvanic isolation

SIMRAD multifunction navigation instrument (eco, log, water temp)

SIMRAD automatic pilot control unit

Magnetic Compass

SIMRAD VHF

Windlass control

Stabilizer control

Searchlight control

Anti-fog horn

Digital chain counter



ENTERTAINMENT EQUIPMENT

Upgraded AV package

TV 55” LED with controlled ceiling lift in the lounge

TV 46” in the Owner's cabin

TV 40” guest cabin forward left

TV 40” guest cabin aft right

TV 40” VIP cabin right aft

TV 40” VIP cabin left aft

TV 32” guest cabin forward left

TV 22” in the galley with DVD and speakers

TV 22” in the Captain's cabin

KVH TV8 satellite TV antenna with standard receiver in the living room

TV8 empty dome antenna for symmetry on the roll bar



DECK EQUIPMENT

Dual Mode Transom

Control station fixed cover in the cockpit

Hydromassage bathtub on Sundeck

Electro-hydraulic swim ladder to starboard on swim platform

2 x Stern mooring capstans 1700W each

CCTV in cockpit

Double-mode transom door

2 x Electric anchor windlasses 3500W

Anchor chain 13mm 130m + anchor chain 13mm 150m

Digital chain counter

2 x POOL anchors 85 kgs

Electric winch for tender launch

Teak deck on walk around bow area out of the pilot house

Moveable teak flooring in the aft garage

Teak on sundeck

Jacuzzi on sundeck

Manual bimini top on sundeck

Cleats on swimming platform

Cockpit shower with fresh water

Fresh water outlet for exterior washing

Lighting in stairs

Sunbrella for the beach club with housing

XENON underwater lights on the sides of the hull

XENON lights under bathing platform



EXTRA ACCESSORIES INSTALLED ON BOARD

Hydraulic stern thruster 40 Hp

Electric aft saloon door

Tropical air conditioning (saloon + cabins + crew)

Saloon portal upper band lighting

Fixed cockpit control station with cover

Separable beds (sliding) right VIP cabin

Galley table in marble

2 x Wine cellars in the living room and galley

Headboard and bed frame in the Owner's cabin covered in Nobuk leather

Tubular LED lights under galley cabinets

VIP cabin mirrors on the side of the TV totem

Glossy lacquered TV totem panel

Underwater lights added along the sides

XENON watertight underwater lights under aft platform

Dimmer lights on lower deck, panoramic deck, main deck and cockpit

Electric lifting of curtains for lower deck cabins and Owner's cabin

Teak flooring in movable platform in the garage

Teak walkway at the bow of the bridge

2 x Retractable cleats on the tailgate

Galley oven 90cm

Ice maker with independent tank

Upper deck electric blinds

HAMMAN black water treatment system

IDROMAR 350 l/h watermaker

Freezer 74 l additional in the galley

Induction hob

Low LED strip on walled folder for guest cabins

Spoiler descent staircase lights

Electric saloon aft awning

Panoramic dining room tent

SIMRAD Upgrade Dashboard

Main deck parquet flooring

Bathroom floor + Owner's shower walls in marble

Shower tray + Owner's cabin shelf in marble

A/V Package Premium Control Area: iPad Mini upper saloon / sundeck / Owner iPad Mini access point, device control, commissioning

Umbrella at the bow

Removable aft bimini

Bimini with 4 poles on the sun deck

Cockpit table + cockpit chairs

Additional fiberglass furniture in the cockpit

Umbrellas and additional fixing eyelets

Left and right compartments lockers aft hangar

Fixing of external cushions

Second additional washer-dryer

Norwegian furniture for cockpit

Awning with railing in cockpit privacy awning in main deck cockpit with perforated fabric

Lateral handrails above stern boots

Waterproof roller blind in the garage for delimitation of the beach / hangar

Removable teak cover for rafts

Post rods with glass on side boots (2 rods + 4 glasses)

Party mode upper deck

Backlit stainless-steel name

Whirlpool tub on sundeck with temperature maintenance system

CCTV with Flir Pan / Tilt M324 XP thermal night camera

Double sponge cover for outdoor sundeck

PAOLA LENTI blend for sundeck, dinette and bow sundeck and cockpit sofa

Opening window on the right and left side of the Owner's cabin



TENDER

445 WILLIAMS Diesel Jet tender (110 Hp)
