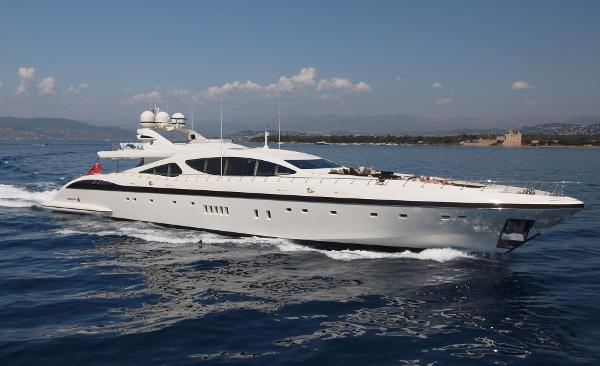

2007 Mangusta 130 Jomar

• Make: Mangusta

• Model: 130

• Condition: Used

• Category: Power

• Construction: Fiberglass

• Boat Hull ID: MAN130008207

• Has Hull ID: Yes

• Length: 39.62 m / 130 ft

• Length Overall: 39.62 m / 130 ft

• Beam: 25 ft ft

• Make: MTU

• Model: 16V 4000 M90

• Drive Type: Jet

• Fuel: diesel

• Engine Power: 3750|horsepower

• Type: Inboard

• Engine Hours: 3355

• Engine Location: Port

• Model: 16V 4000 M90

• Drive Type: Jet

• Fuel: diesel

• Engine Power: 3750|horsepower

• Type: Inboard

• Engine Hours: 3407

• Engine Location: Starboard

• Total Engine Power: 7500|horsepower

Key Features

• 2019 refit with over USD 700,000 invested
• 6 Seakeepers
• Commercially compliant
• Five well-appointed cabins with a full beam master and VIP
• Aft deck jacuzzi
• Top speed of 32 knots
• Extensive toy collection

Construction

Twin water-jets diesel Mediterranean Sport motor yacht of contemporary design, in the style of the other Mangusta motor yachts, with a modified deep V planning hull, flared bow and transom type stern with integrated bathing platform.

Accommodations

Guests: 11

Master Cabin: 1

Double: 3

Triple: 1 + Pullman: 1

Crew: 6

Crew Cabins: 3

Floor: Wood wenge and carpets

Engines, Propulsion and Generators

Engines: 2 x MTU 16V 4000 M90

Fuel: Diesel

Year: 2007

Horsepower: 2 x 3,645 HP

Port engine hours: 3,355 Hours

Starboard engine hours: 3,407 Hours

Fuel consumption cruising: 1,000 l/h

Fuel consumption top speed: 1,450 l/h

Gearboxes: 2 x ZF BW 7550

Generators: 2 x Kohler   70kw 400V 50Hz

Generator 1 hours: 16,089 Hours

Generator 2 hours:  16,064 Hours

Propulsion: 2 x Kamewa 63SII Water Jets

Fin tabs: Humphree

Tank Capacity

Fuel Capacity: 24,000 L

Fresh Water capacity: 4,000 L

Black & Grey water tank capacity: 3600 L

Mechanical Equipment

Air Condition System: Frigit Air Conditioning Reverse-cycle

Water Maker 1: Idromar 200L/hour

Water Maker 2: Idromar 200L/hour

Air compressors: Kaeser SX3

Main Engine Fuel Filters: Racor

Bilge / Fire Pump AC: Gianneschi ACM 501 BT 400 V 3-Phase

Bilge/ Fire Pump DC: Gianneschi ACM 501 BT 24 V DC

Automatic Bilge Pump: 2 x Gianneschi Minisub 24 V DC

Fuel Cleaning: Alfa Laval MAB 103 300 V 3 – Phase

Main Engine Fuel Separator Filters: Separ SWK/2000/40/UMS

Generator Fuel Separator Filters: Separ SWK/2000/5/MK

Tank Drain Pump: Gianneschi ACB 61 240 V 1-Phase

Oil Change Pump: Gianneschi FQ 25 230 V 1-Phase

Fuel Transfer Pump: Gianneschi ACB 80 300 V Triple-Phase

Engine Room Extractors: 6 x Gianneschi Ell/R 560

Fresh Water Pumps: 2 x Gianneschi Jet 518 400 V

Hot Water Circulation Pumps: Gianneschi Z 25 230 V 1-Phase

Sterilizer: Idromar

Blackwater Tank Drain Pump: Gianneschi Exo MV 44 400V

Declinators: Idromar MC5 BX 230 L/H

Toilets: Tecma

Water Heaters: 3 x Gianneschi 120 Litres

Bow Thrusters: American Bow Thruster - 45Kw

Waste treatment system: Hamann Minicompact 400 V 3-Phase

Stabilizers: 6 x Seakeeper

Electrical Equipment

Voltage: 380V / 220V 50 Hz

Battery Charges: 2 x Dolphin 24V 50 / 100A

Main Engine Starter Battery: 2 x 24V 220 AH

Generator Starter Battery: 2 x 24V 60 AH

MTU Battery Capacity: 24V 100 AH

Battery / Capacity: Service & emergency as per classification requirements

Shore power: 50 Hz

Shore power convertor: 75 kW

Underwater Lights

Safety equipment

According to Class Requirement

3 Life rafts 2 x 10 person + 1 x 12 person SOLAS PACK B

Engine room C02 firefighting system

12x dry power fire extinguishers, 2 kg / 1 x 4 kg / 6 x 6 kg

2 x foam fire extinguishers, 9Lt

3 x C02, 5kg / 1 x CO2, 20 kg

Engine room: 2 x Fix C02 45 Kg with automatic release

EPIRB: 1 x MC MURDO

SART: 2 x MC MURDO smartfind E5/G5

Fire Alarm: AUTRONICA

CCTV with 2 x cameras

BA: 4 x tanks 6L

Life jackets: 26 adults and kids

Immersion suits: 19

Communication

1 x VHF/DSC Simrad RS82 CORNETTA AHK-82

1 x VHF CLASS A SAILOR 6222

2 x VHF DSC Loudspeaker Poly-Planar MA 1000

1 x AIS FURUNO FA-AI50

1 x all-to-all Intercom Phonotech CIS3100 – Pilothouse

1 x all-to-all Intercom Phonotech 9300 – Engine Room, Headphone adapter, Headphone

1 x SSB Furuno 1575

Navigation

1 x FURUNO NAVNET Radar / Chart Plotter / Depth / Speed NSO evo2

1 x GPS / DGPS FURUNO GP-37

1 x Chart Plotter:  Maxi Time Zero

1 x 4’Simrad scanner TX06S

1 x Radar FURUNO FAR - 2117 series

1 x Control unit Keyb. SIMRAD OP40

1 x Autopilot Simrad AP 50

1 x Kamewa interface Simrad AD50

1 x Magnetic Compas White star

1 x Depth Transdecer FURUNO RD-30

1 x Speed Transducer FURUNO RD-30

1 x Navtex Furuno NX-700

3 x Distry signal Simrad Simnet multijoiner 7

1 x Wind Transducer Simrad IS20 Wind Antenna

4 x Data Repeater Simrad Watchkeeper 15

Deck Equipment

2 x SEC 212kg galvanized anchors

2 x 16mm 140m galvanized chain

2 x Maxwell VWC 6000 4,4Kw

2 x Maxwell VC 4000 3Kw

1 x Sanshine HR-10 12 search lights

Kahlenberg T-1 air horns

Sanguineti Chiavari swim ladder

Sanguineti Chiavari passerelle

1 x sun bed forward

1 x Sun bed aft deck

Jacuzzi aft deck

Swim platform

Deck Shower x 2

Galley Equipment

Ovens: 1 x Miele

Stove: 1 x Miele

Microwave: 1 x Miele

Fridge/Freezer: 6 x Fridge/Freezer

Icemaker:  Uline

Coffee maker: Nespresso

Boiler: 3

Dish washer: 1 x Miele

Laundry

Washing Machine: 2 x Miele Professional

Dryer: 2 x Miele Professional

Tenders & Toys

1 x 13' Jet tender

2 x Seabobs

2 x Seadoo Jet Skis
