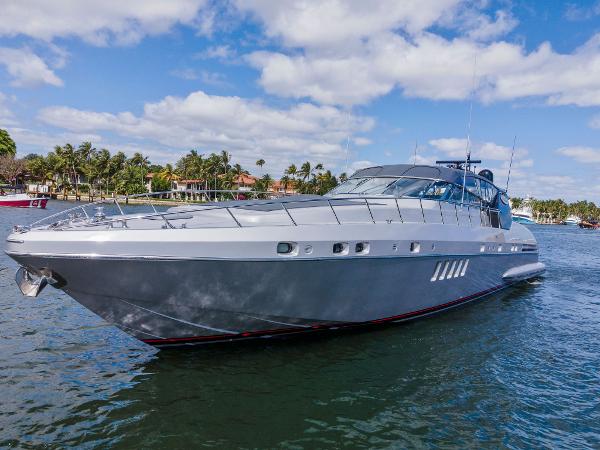

2007 Mangusta 108 TECHNOMARINE

separator
$3,252,522
yacht-location
Location

Cannes, 06

yacht-location
Builder

Mangusta

yacht-location
Cabins

4

yacht-location
Length

33.28 m / 109.19 ft

This is an opportunity to acquire one of the very finest Mangusta 108's on the market, having enjoyed extensive refit and meticulous maintenance from a very passionate owner and crew. Technomarine offers 4 comfortable cabins and zero-speed Seakeeper Stabilizer.

Key features:

- 2 X MTU 12V 4000 M90 - 2,735 HP each
- 2 x KAMEWA Waterjets model 63 S3
- Top Speed 30+ knots
- Seakeeper Stabilizer Gyroscopic Model 26
- Hydraulic Bow Thruster BCS 47 kW
- 4 cabins: 1 owner + 2 double + 1 Twin
- Renovated interior + exterior seating and fabrics

Disclaimer:

We provide this yacht listing in good faith, and although we cannot guarantee its accuracy or the condition of the boat. The Italian Yacht Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by TWW Yachts Monaco. She is subject to prior sale, price change, or withdrawal without notice and does not imply a direct representation of a specific yacht for sale.
Specifications
  • Yacht Type

    Power

  • Brand

    Mangusta

  • Year

    2007

  • Hull

    Fiberglass

  • Days Listed

    88 Days

  • Price

    $3,252,522

  • Length Overall

    33.28 m / 109.19 ft

  • Beam

    23.36 ft

  • Max Draft

    3.28 ft

  • Max Speed

    34 kn

  • Cruising Speed

    30 kn

  • Engines

    2 x diesel

Full details

• Make: Mangusta

• Model: 108

• Condition: Used

• Category: Power

• Construction: Fiberglass

• Has Hull ID: No

• Length: 33.28 m / 109.19 ft

• Length Overall: 33.28 m / 109.19 ft

• Beam: 23.36 ft ft

• Make: MTU

• Model: 12V 4000 M90

• Fuel: diesel

• Engine Power: 2735|horsepower

• Type: Inboard

• Engine Hours: 1702

• Engine Location: Port

• Model: 12V 4000 M90

• Fuel: diesel

• Engine Power: 2735|horsepower

• Type: Inboard

• Engine Hours: 1693

• Engine Location: Starboard

• Total Engine Power: 5470|horsepower

• Fuel Tanks: 1

• Fuel Tank Capacity: 14700|liter

• Water Tanks: 1

• Water Tank Capacity: 2000|liter

• Holding Tank Count: 1

• Holding Tank Capacity: 1600|liter

Specifications

DIMENSIONS

- LENGHT OVERALL: 33.28 m (109’)
- LENGHT ON WATERLINE: 29.71 m (97’4’)
- BEAM: 7.12 m (21’7’’)
- MAX DRAFT: 1.30 m (17’3’’)
- DISPLACEMENT AT FULL LOAD: 105t (231,485 LBS)
- DISPLACEMENT AT HALF LOAD: 98t (216,053 LBS)


PROPULSION

- MAIN ENGINES POWER: 2 X MTU 12V 4000 M90 2735 HP each
- HOURS PORT 1,702 – STBD 1,693
- TRANSMISSION: 2 X KAMEWA63 S 3
- GENERATORS: 2 X KOHLER 33EFOZ @ 33kW each
- HOURS PORT 3,940 – STBD 3,940
- STABILIZER: (Installed 2018) 1 X SEAKEEPER mod. 26

TANK CAPACITY

- FUEL CAPACITY: 14,700 L (3,883 US GALS)
- WATER CAPACITY: 2,000 L (528 US GALS)
- GREY & BLACK WATER: 1,600 L (422 US GALS)


ACCOMMODATION

- GUEST CABINS: 1 OWNER + 2 VIP + 1 TWIN (+ Pullman berth)
- CREW CABINS: 1 SINGLE CAPTAIN + 2 TWIN CREW


PERFORMANCE

- MAX SPEED HALF LOAD: 34 KNOTS
- MAX SPEED FULL LOAD: 30 KNOTS
- CRUISING SPEED HALF LOAD: 30 KNOTS

RANGE AT ECONOMICAL
- CRUISING SPEED: 350 NAUTICAL MILES LONG


PROPULSION

REDUCTION GEARS
Two flange-mounted reduction gears ZF model 4650 with a reduction ratio selected in accordance to Kamewa


WATERJETS
Two waterjets Kamewa (RRAB) model 63 S3 connected to the output flange of the gearbox by means of a coupling supplied by Kamewa


STEERING SYSTEM
Kamewa WJ steering system


DIESEL GENERATOR
Two Kohler EFOZ 33kW marine generator, each having a capacity of 33 kW


BOW THRUSTER SYSTEM
Hydraulic Bow Thruster BCS 47 kW


ONBOARD SYSTEM
FUEL SYSTEM
Direct suction from structural GRP tank through two RACOR fuel pre-filter supplied by MTU and WESTFALIA OTC2 Fuel purifier


BILGE / FIRE FIGHTING PUMP SYSTEM
• Gianneschi bilge pumps and fire fighting
AIR CONDITIONING SYSTEM
• Frigomar (2 new inverters)
